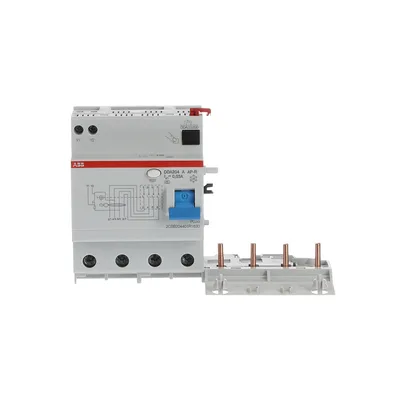

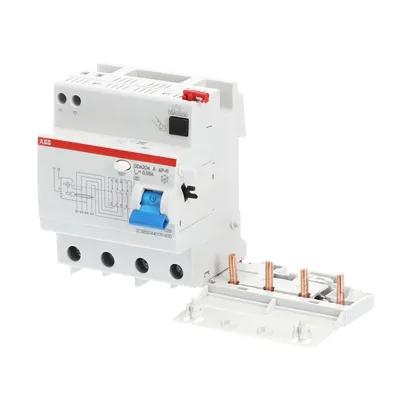

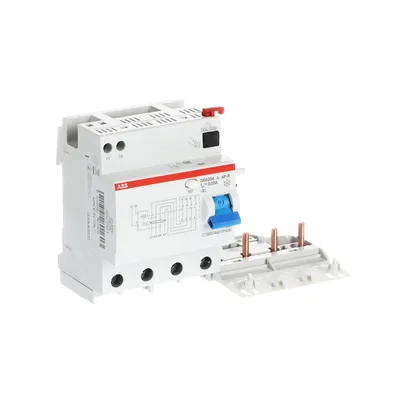

ABB 2CSB204401R1630

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSB204401R1630

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, providing the best compromise between safety and continuity in the service thanks to the resistance to unwanted trippings. Protection against indirect contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

ABBMFR # 2CSB204401R1630SKU # YLSPEXZUNCCGQDT

Extended Product TypeDDA204 A-63/0.03 AP-R

Type of Residual CurrentType A APR

Maximum Surge Current3 kA

Leakage Current TypeA

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, providing the best compromise between safety and continuity in the service thanks to the resistance to unwanted trippings. Protection against indirect contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

ABB 2CSB204401R1630

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDDA204 A-63/0.03 AP-R

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 85.84 %, Recycled Paper - 0 %, Recycled Paper - 0 %

Type of Residual CurrentType A APR

Maximum Surge Current3 kA

Leakage Current TypeA

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Number of Poles4P

Number of Modular Spacings per DIN Rail8

Connecting CapacityRigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Short-Circuit Current Rating (SCCR)0.03 ... 0.03 A

Rated Voltage (Ur)230/400 V

Rated Operational Voltage230/400 V

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Rated Current (In)63 A

Rated Residual Current30 mA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 7.6 W

Number of Modules8

Ambient Temperature-25...55 °C

Ambient Air TemperatureOperation -25...55 °C

Degree of ProtectionIP2X

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

StandardsIEC/EN 61009 Ann. G

Documents & CAD

Documents 7

CertificateEcosolution Product Profile DDA200 CNIIBPDF·242 KB·English

Instruction ManualDDA200 Instruction ManualPDF·5.4 MB·English

CertificateEPD ABBG-00519-V01.01-EN - DDA200PDF·1.5 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateNF FR for Serie/Series DDA200PDF·626 KB·English

CertificateISI IL for Serie/Series DS201, DS201M, DS202M, DS203M, DS204M, DDA200PDF·1.3 MB·English

CertificateEnvinronmental Information DDA202 - RCD-blocksPDF·1.6 MB·English

CAD Files 5

3D Model

2D Drawing
