How can I get a price quote for ABB 2CPX010948R9999?

You can request a fast quote for ABB 2CPX010948R9999 from Yılsa Engineering. Reference part number YLS5EGTUSCDP5E8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CPX010948R9999 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CPX010948R9999 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CPX010948R9999?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

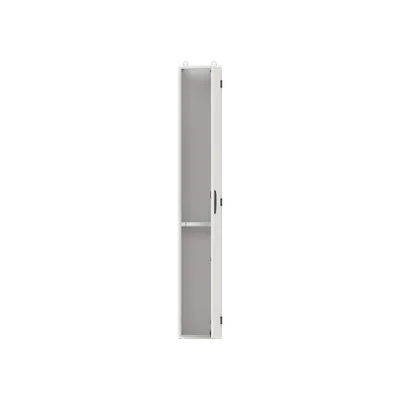

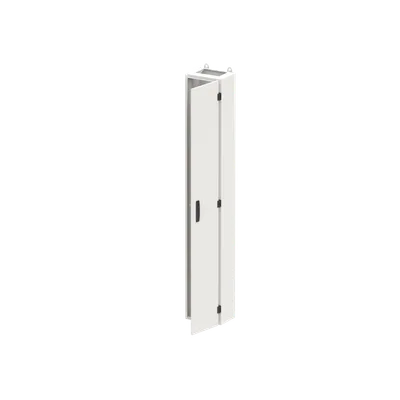

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CPX010948R9999

Floor-standing cabinet, series TwinLine, empty cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP44, applicable standards: EN 61439-1, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, door hinge right or left, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 300 x 225, Grid unit 12 GU, Overall height 8, panel width 1, Space units 144, pre-assembled for installation of modules and CombiLine Modules

ABBMFR # 2CPX010948R9999SKU # YLS5EGTUSCDP5E8

Extended Product TypeTH112G

Number of Flange Openings1

Number of Conduit Inlets52

Number of Rows12

Enclosure TypeFloor-standing cabinet

Enclosure Type of Height8
