How can I get a price quote for ABB 2CPX010249R9999?

You can request a fast quote for ABB 2CPX010249R9999 from Yılsa Engineering. Reference part number YLSRC5VP7KCCXN2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CPX010249R9999 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CPX010249R9999 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CPX010249R9999?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

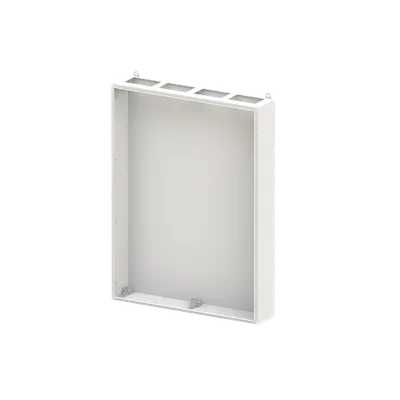

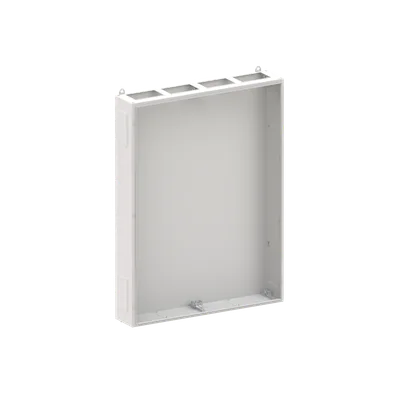

ABB 2CPX010249R9999

Wall-mounting cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for the internal use, without door, class of protection I (earthed), degree of protection IP30, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of sheet steel, without door, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1400 x 1050 x 225, Grid unit 9 GU, Overall height 5, panel width 4, Space units 432, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module, mounting plates on EDF-/WR-mounting frame

ABBMFR # 2CPX010249R9999SKU # YLSRC5VP7KCCXN2

Extended Product TypeTG409GB

Number of Flange Openings4

Number of Conduit Inlets208

Number of Rows9

Enclosure TypeWall-mounting cabinet

Enclosure Type of Height5
