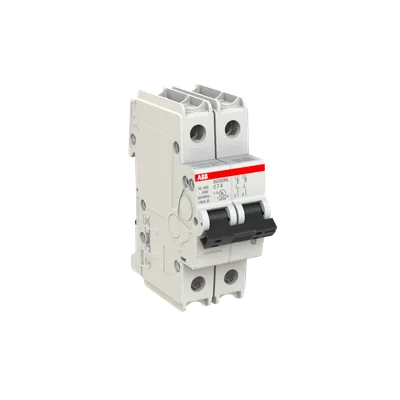

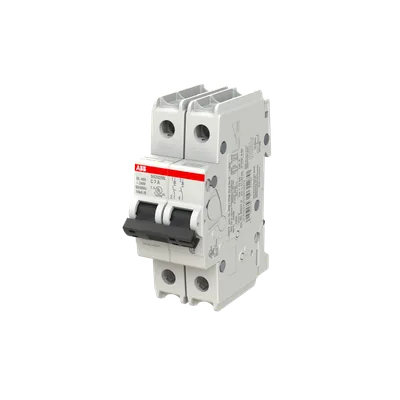

ABB 2CDS272339R0074

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS272339R0074

SU202ML-C7 Miniature Circuit Breaker SU202ML-C7 Miniature Circuit Breaker C-Char., 10kA, 7A, 2P

ABBMFR # 2CDS272339R0074SKU # YLSEXIKURJVHBE

Extended Product TypeSU202ML-C7

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Accessories AvailableYes

Terminal TypeDouble Clamp

Share

Have questions?Chat on WhatsApp

About This Product

SU202ML-C7 Miniature Circuit Breaker SU202ML-C7 Miniature Circuit Breaker C-Char., 10kA, 7A, 2P

ABB 2CDS272339R0074

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSU202ML-C7

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 15 kA, (400 V) 15 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(400 V AC) 11.2 kA

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Accessories AvailableYes

Connecting CapacityFlexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm²

Terminal TypeDouble Clamp

Rated Operational Voltageacc. to IEC 60898-1 400 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 400 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC/DC

Rated Current (In)7 A

Rated Frequency (f)50 / 60 Hz

Power Loss6.3 W, at Rated Operating Conditions per Pole 2.1 W

Overvoltage CategoryIII

Interrupting Rating acc. to UL489(240 V AC) 14 kA, (96 V DC) 14 kA

Ambient Air TemperatureOperation -25 ... +55 °C

Degree of ProtectionIP20, IP40

Pollution Degree3

Width in Number of Modular Spacings2.0

Built-In Depth (t2)69 mm

StandardsCSA 22.2 No. 5, IEC/EN 60947-2, UL 489

Certification AgencyCSA, EN, IEC, UL

Documents & CAD

Documents 18

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateIHM declaration MCBs and AccessoriesPDF·278 KB·English

CertificateEPD MCB Compact (SU200M, SU200ML, SU200MR and SUP200M) FamilyPDF·183 KB·English

DatasheetSU200ML Miniature Circuit Breakers Data Sheet - United States (9AKK107046A9269-US)PDF·1.3 MB·English

CertificateCertificate KC acc. to 60947 Made in BulgariaPDF·622 KB·English

CertificateCertificate KC acc. to 60947 Made in GermanyPDF·905 KB·English

CertificateCertificate CCA acc. to 60947 Made in BulgariaPDF·90 KB·English

CertificateCertificate CB acc. to 60947 Made in BulgariaPDF·119 KB·English

CertificateCertificate VDE acc. to 60947 Made in GermanyPDF·285 KB·English

DatasheetSU200ML DatasheetPDF·1.6 MB·English

CertificateCertificate CSA acc. to CSA22.2 No.5 Made in GermanyPDF·32 KB·English

CertificateCertificate UL acc. to UL489 Made in GermanyPDF·314 KB·English

CertificateCertificate CCA acc. to 60947 Made in Germany - Update On GoingPDF·80 KB·English

CertificateCertificate CB acc. to 60947 Made in Germany - Update On GoingPDF·102 KB·English

DatasheetSU200MR Miniature Circuit Breaker acc. to CSA C22.2 No.5 / UL489PDF·1.2 MB·English

DatasheetSU 200 ML Wiring fact sheetPDF·184 KB·English

CertificateCertificate VDE acc. to 60947 for SU200ML Made in GermanyPDF·279 KB·English
