How can I get a price quote for ABB 2CDS272011R0064?

You can request a fast quote for ABB 2CDS272011R0064 from Yılsa Engineering. Reference part number YLSQCRUKNCZ3AP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS272011R0064 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS272011R0064 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS272011R0064?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

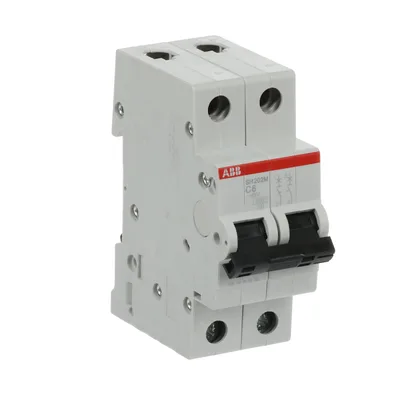

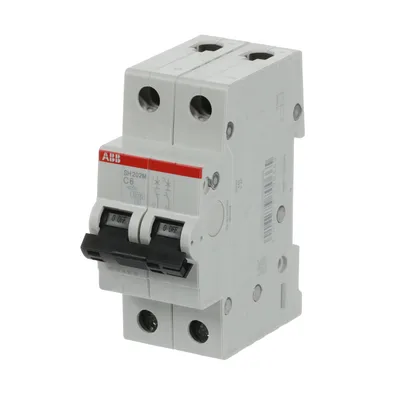

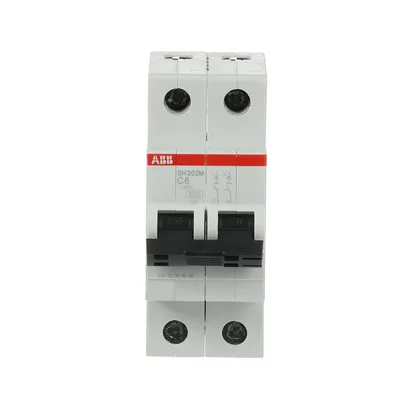

ABB 2CDS272011R0064

SH202M-C6 Miniature Circuit Breaker - 2P - C - 6 A

ABBMFR # 2CDS272011R0064SKU # YLSQCRUKNCZ3AP

Extended Product TypeSH202M-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS272011R0064 (SH202M-C6 Miniature Circuit Breaker - 2P - C - 6 A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS272011R0064 — price, stock availability and technical specifications.

ABB 2CDS272011R0064

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSH202M-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles2

Number of Poles2P

Tightening Torque2 N·m

Actuator TypeToggle

Screw Terminal TypeCage Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityConductor 25 / 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Installation Sizeacc. to DIN 43880 1

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity(AC) 10 kA, (400 V AC) 10 kA, (400 V) 10 kA

Rated Conditional Short-Circuit Current (Inc)(230 V) 16 kA, (400 V) 16 kA

Rated Frequency (f)50 / 60 Hz

Power Loss4 W, at Rated Operating Conditions per Pole 2 W
