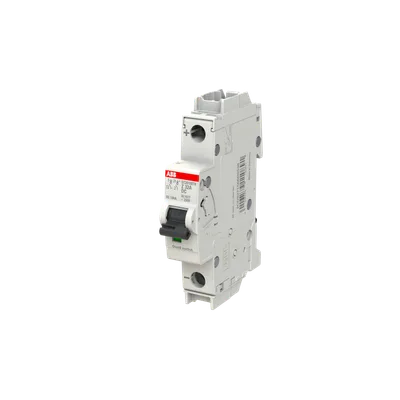

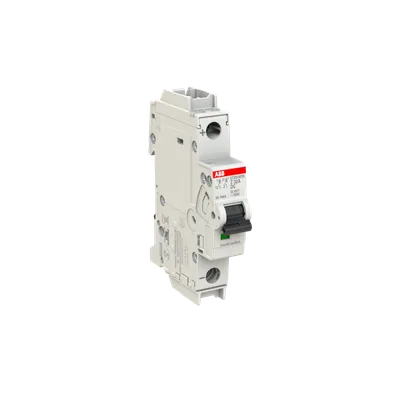

ABB 2CDS271566R0538

ST201MTR-Z32 DC Miniature Circuit Breaker Z-Char., 10kA, 32A, 1P

ABBMFR # 2CDS271566R0538SKU # YLSGNAGBIAVELKB

Extended Product TypeST201MTR-Z32 DC

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Number of Protected Poles1

Have questions?Chat on WhatsApp

About This Product

ST201MTR-Z32 DC Miniature Circuit Breaker Z-Char., 10kA, 32A, 1P

ABB 2CDS271566R0538

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeST201MTR-Z32 DC

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P

Tightening Torque2.8 N·m

Screw Terminal TypeRing-Tongue Terminal with Captive Screw

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Options ProvidedSuitable for traction application

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 16 mm²

Terminal TypeRing-Tongue Terminals

Rated Voltage (Ur)250 V DC

Rated Operational Voltage440 V AC, acc. to IEC 60947-2 240 V AC

Operational VoltageMinimum 12 V AC / 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)at Sea Level 4 kV

Input Voltage TypeDC

Rated Current (In)32 A

Rated Short-Circuit Capacity(400 V) 10 kA

Rated Frequency (f)50 / 60 Hz

Power Loss4.1 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Ambient Air TemperatureOperation -40 ... +75 °C, Storage -40 ... +75 °C

Degree of ProtectionIP20, Enclosure with Cover IP20

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsUL 1077, CSA 22.2 No. 235

Certification AgencyIEC

Documents & CAD

Documents 7

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

DatasheetST 200 M Technical Data SheetPDF·1.2 MB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

Instruction ManualEoL instruction S200MTR, ST200MTR, S200MRPDF·388 KB·English

CertificateEPD MCB Compact S200MTR, S200MTR-DC, ST200MTR, ST200MTR-DC and S200MR FamilyPDF·269 KB·English

CertificateUKCA declaration S200MTR and ST200MTRPDF·91 KB·English

CertificateEU_declaration_of_conforminty_MTRPDF·237 KB·English
