How can I get a price quote for ABB 2CDS254001U0325?

You can request a fast quote for ABB 2CDS254001U0325 from Yılsa Engineering. Reference part number YLSFUKPLQRIUABL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS254001U0325 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS254001U0325 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS254001U0325?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

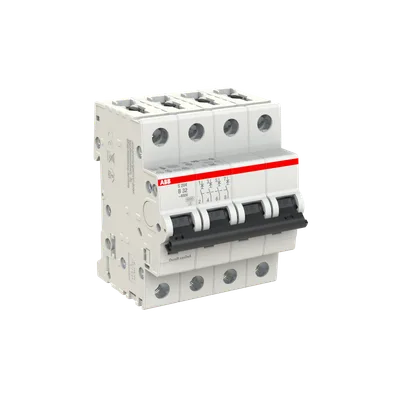

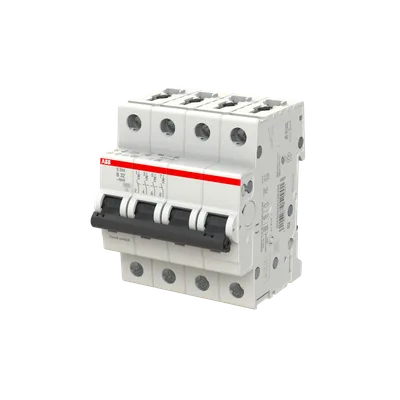

ABB 2CDS254001U0325

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

ABBMFR # 2CDS254001U0325SKU # YLSFUKPLQRIUABL

Extended Product TypeS204-B32 MTB

Offered with Takeback ServicesTake Back for Recycling

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS254001U0325

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS204-B32 MTB

Offered with Takeback ServicesTake Back for Recycling

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Number of Protected Poles4

Number of Poles4P

Tightening Torque2.8 N·m

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Options ProvidedUnpacked

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC

Operational VoltageMaximum (Incl. Tolerance) 440 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC/DC

Rated Current (In)32 A

Rated Short-Circuit Capacity(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (Inc)(230 V) 20 kA, (400 V) 20 kA

Rated Frequency (f)50 / 60 Hz

Power Loss14.8 W, at Rated Operating Conditions per Pole 3.7 W
