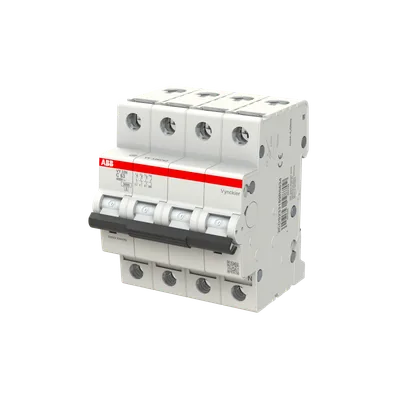

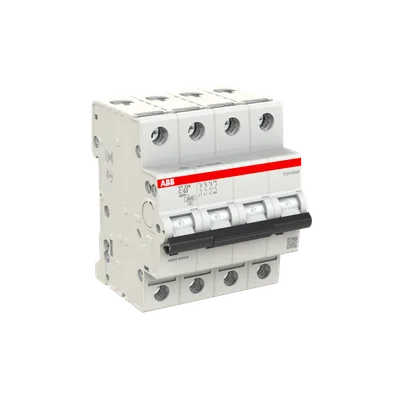

ABB 2CDS233189R0634

VY30 ABB VY miniature circuit breakers are current limiting, allowing protection of the circuit against overcurrents (overloads and short circuit). They are available in C characteristics, different configurations (2P,3P,3P+N) and 3kA breaking capacity at 230/400V AC and rated current up to 63A complying IEC/EN 60898-1 Standard. Accessoriable range displaying the fork slot access on top/bottom sides.

ABBMFR # 2CDS233189R0634SKU # YLSXTESYSQYI3CY

Extended Product TypeVY33NC63

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS233189R0634

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeVY33NC63

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P+N

Number of Modular Spacings per DIN Rail4

Position of Neutral TerminalsRight

Tightening Torque2 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom

Actuator MarkingRed ON / Green OFF

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10 ... 16 mm², Busbar Fork 10 / 16mm² mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Solid 0.75 ... 35 mm²

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC / 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V, Phase to Phase 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)63 A

Rated Short-Circuit Capacity(400 V AC) 3 kA, (400 V) 3 kA

Rated Frequency (f)50 / 60 Hz

Power Loss19.2 W, at Rated Operating Conditions per Pole 4.8 W

Overvoltage CategoryIII
