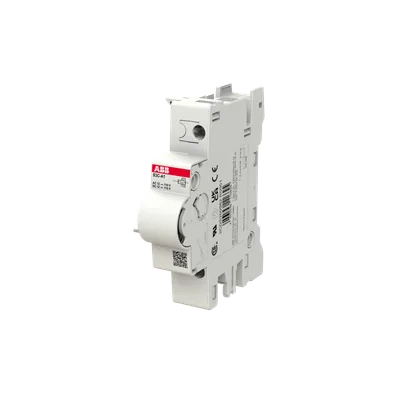

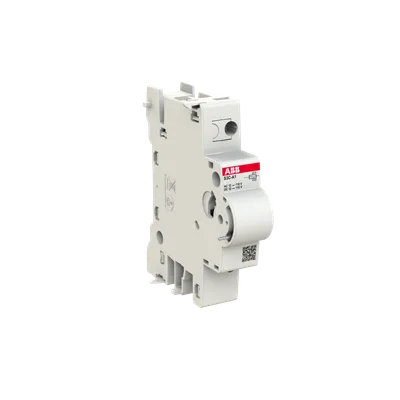

ABB 2CDS200982R0001
Remote opening of the device when a voltage is applied. Suitable for MCBs S 200, S 200 MTR, S 300 P, VY 30, SN 201 series, RCCBs F 200, VY series, RCBOs DS 200, DS 301 C series, SD 200 switch disconnectors series. To be mounted on the right side of the devices.
Extended Product TypeS3C-A1
Suitable for Product ClassAuxiliary switch/relay
Tightening Torque0.8 N·m
Wire Stripping Length7 mm
Terminal TypeScrew Terminals
Rated Voltage (Ur)12 ... 110 V
About This Product
Remote opening of the device when a voltage is applied. Suitable for MCBs S 200, S 200 MTR, S 300 P, VY 30, SN 201 series, RCCBs F 200, VY series, RCBOs DS 200, DS 301 C series, SD 200 switch disconnectors series. To be mounted on the right side of the devices.
ABB 2CDS200982R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS3C-A1
Suitable ForS200, S200 M, S200 MT, S200 MTR, S200 P, S200 MUC, S300 P, VY30, SD200, F200, RCCB VY, SN201, DS203NC, S-ARC1, DS-ARC1, DSE201 M, DS201, DS301C, S3C-MOD, F3C-AR, DS200, DS202CR, S200C Enhancement
Suitable for Product ClassAuxiliary switch/relay
Tightening Torque0.8 N·m
Connecting CapacityFlexible 0.75 ... 2.5 mm², Rigid 0.75 ... 2.5 mm², Stranded 0.75 ... 2.5 mm²
Wire Stripping Length7 mm
Terminal TypeScrew Terminals
Rated Voltage (Ur)12 ... 110 V
Rated Operational Voltage12 ... 110 AC/DC V
Input Voltage TypeAC/DC
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Width in Number of Modular Spacings1.0
StandardsCSA 22.2 No. 235, UL 1077
