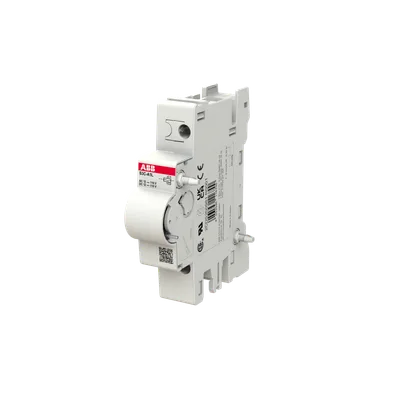

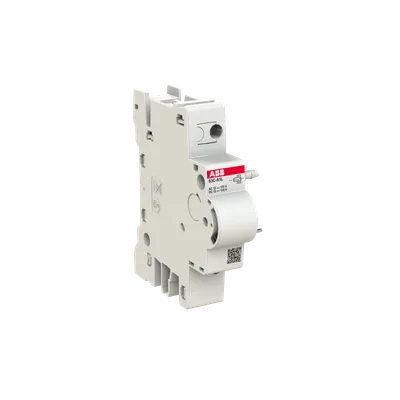

ABB 2CDS200981R0001

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS200981R0001

Remote opening of the device when a voltage is applied. Suitable for MCBs S 200, S 200 MTR, S 300 P. To be mounted on the left side of the devices.

ABBMFR # 2CDS200981R0001SKU # YLSYEK5KRJKJHQ6
Extended Product TypeS3C-A1L
Suitable for Product ClassAuxiliary switch/relay
Tightening Torque0.8 N·m
Wire Stripping Length7 mm
Terminal TypeScrew Terminals
Rated Voltage (Ur)12 ... 110 V
Share
Have questions?Chat on WhatsApp

About This Product

Remote opening of the device when a voltage is applied. Suitable for MCBs S 200, S 200 MTR, S 300 P. To be mounted on the left side of the devices.

ABB 2CDS200981R0001

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeS3C-A1L
Suitable ForS200, S200 M, S200 MT, S200 MTR, S200 P, S200 MUC, S300 P, VY30, SD200
Suitable for Product ClassAuxiliary switch/relay
Tightening Torque0.8 N·m
Connecting CapacityFlexible 0.75 ... 2.5 mm², Rigid 0.75 ... 2.5 mm², Stranded 0.75 ... 2.5 mm²
Wire Stripping Length7 mm
Terminal TypeScrew Terminals
Rated Voltage (Ur)12 ... 110 V
Rated Operational Voltage12 ... 110 AC/DC V
Input Voltage TypeAC/DC
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Width in Number of Modular Spacings1.0
StandardsCSA 22.2 No. 235, UL 1077

Documents & CAD

Documents 9

Instruction ManualS3C-Ax- End of Life Instruction (EoL)PDF·344 KB·English
Instruction ManualInstruction Manual S3C-A1L, S3C-A2LPDF·1.5 MB·English
CertificatePEP ecopassport - S3C-AxPDF·620 KB·English
Instruction ManualEnd of Life Instruction S3C-AxxPDF·211 KB·English
Technical Drawing2D drawing S3C-A1L S3C-A2LPDF·289 KB·English
DatasheetTechnical data sheet S3CPDF·160 KB·English
CertificateCSA certificate of S3C shunt tripsPDF·216 KB·English
CertificateUL certification S3C shunt tripsPDF·871 KB·English
CertificateUKCA declaration S3C/S2C shunt tripsPDF·65 KB·English
