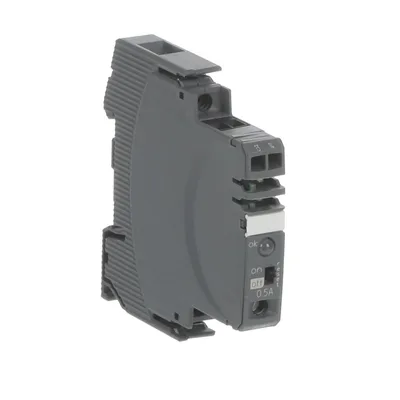

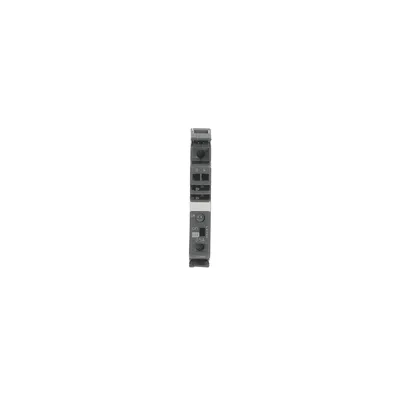

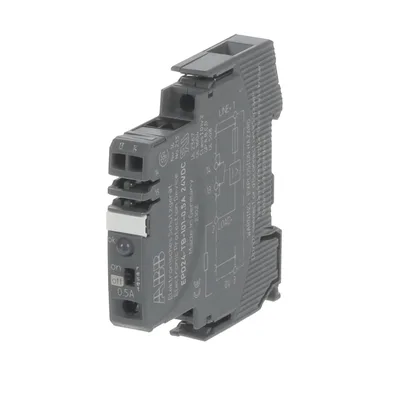

ABB 2CDE601101R2905
The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.
Extended Product TypeEPD24-TB-101-0.5A
Maximum Load Capacity20000 µF
Number of Auxiliary Contacts NO1
Number of Channels1
Signal Indication Fault (LED)Red
Trip TypeElectronic
About This Product
The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.
ABB 2CDE601101R2905
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeEPD24-TB-101-0.5A
Maximum Load Capacity20000 µF
Output SignalOperating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO1
Number of Channels1
Signal Indication Fault (LED)Red
Tightening TorqueAuxiliary Circuit 0.5 N·m, L/N Terminals 1.5-1.8_NU N·m
Trip TypeElectronic
Status IndicatorYes
Additional InformationBackup fuse for EPD24 not required
Recommended Screw DriverScrew Slot
Accessories AvailableYes
OutputPower MOSFET Switching Output (Positive Switching) without Galvanic Isolation
Operating Humidity (RHamb)96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721
Rated Voltage (Ur)24 V DC
Operational VoltageMaximum 18..32 V DC
Rated Current (In)0.5 A
Power Loss0.76 W
Housing MaterialMoulded
RAL NumberRAL 7012 - Basalt Grey
Colordark grey
Ambient Air TemperatureOperation -25 ... +60 °C, Storage -40 ... +70 °C
Degree of ProtectionHousing IP20, Terminals IP20
Pollution Degree2
Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsUL 2367 recognized, CSA 22.2, UL1604
Certification AgencyUKCA
Standardization BodyCSA
