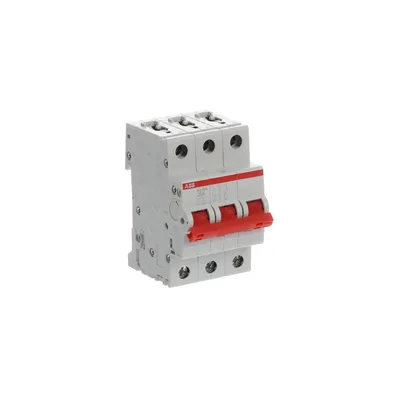

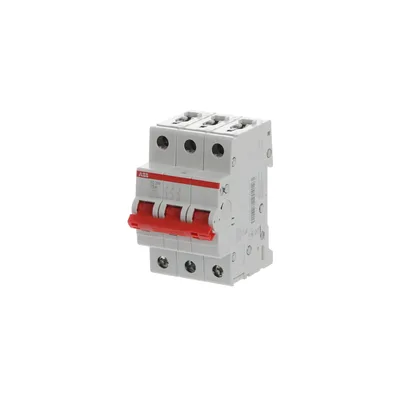

ABB 2CDD283101R0025
SD203/25 - Switch Disconnector - 3P, 25A
Extended Product TypeSD203/25
Contact Position IndicationON / OFF
Electrical Endurance20000 AC cycle
Mechanical Endurance20000 cycle
Number of Poles3P
Tightening Torque2.8 N·m
About This Product
ABB 2CDD283101R0025 (SD203/25 - Switch Disconnector - 3P, 25A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDD283101R0025 — price, stock availability and technical specifications.
ABB 2CDD283101R0025
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeSD203/25
Contact Position IndicationON / OFF
Electrical Endurance20000 AC cycle
Mechanical Endurance20000 cycle
Number of Poles3P
Tightening Torque2.8 N·m
Utilization CategorySwitching of motor loads or other highly inductive loads - frequent actuation (AC-23A)
Actuator TypeToggle
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Switch TypeOff
Actuator MarkingI / O
Actuator MaterialInsulation Group II, Red, Sealable
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Cover ColorGrey
Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Terminal TypeScrew Terminals
Rated Voltage (Ur)440 V, 12 V Minimum
Rated Operational Voltage440 V AC
Operational VoltageMaximum 462 V AC, Minimum 12 V AC
Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage TypeAC
Rated Current (In)25 A
Rated Conditional Short-Circuit Current (Inc)25 kA
Rated Frequency (f)50 / 60 Hz
Power Lossat Rated Operating Conditions per Pole 0.6 W
Number of Contacts NO3
Overvoltage CategoryIII
Housing MaterialInsulation Group I, RAL 7035
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree3
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Width in Number of Modular Spacings3.0
Built-In Depth (t2)69 mm
Mounting Positionany
StandardsIEC/EN 60947-3
Certification AgencyIEC, EN
Standardization BodyEN, IEC
