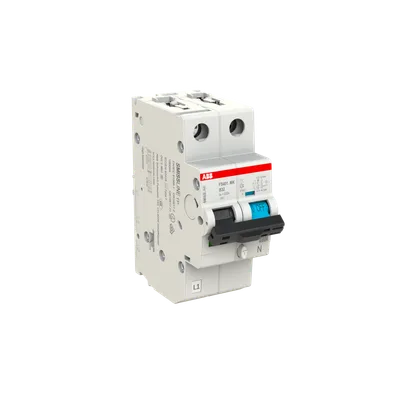

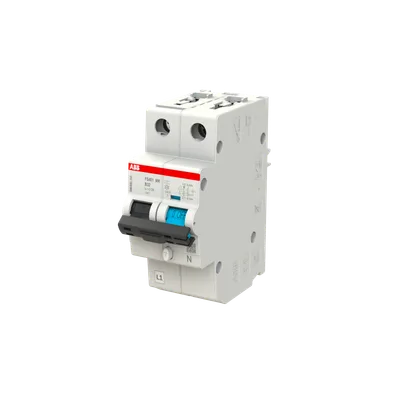

ABB 2CCG001696R0001
The FS401M-K series is a 1P+N pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts. The APR (K type) type provides an optimal trade-off between safety and continuity of service, thanks to the resistance to unwanted tripping, offering good protection and isolation of resistive and inductive loads
Extended Product TypeFS401MK-B32/0.03
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType F
Dielectric Test Voltage2500 kV
Rated Operational Current (Ie)32 A
Maximum Surge Current3 kA
About This Product
The FS401M-K series is a 1P+N pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts. The APR (K type) type provides an optimal trade-off between safety and continuity of service, thanks to the resistance to unwanted tripping, offering good protection and isolation of resistive and inductive loads
ABB 2CCG001696R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeFS401MK-B32/0.03
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 100 %
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType F
Dielectric Test Voltage2500 kV
Rated Operational Current (Ie)32 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA
Rated Residual Breaking Capacity (IΔm)10000 A
Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 7.5 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)10 kA
Maximum Surge Current3 kA
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsRight
Tightening Torque2.8 N·m
Actuator TypeToggle
Earthing Switch TypeShort-Time Delayed
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MaterialInsulation Group II, Black, Sealable
Accessories AvailableYes
Connecting CapacityStranded 0.75 ... 35 mm², Flexible 0.75 ... 25 mm²
Rated Cross-Section1 - Solid-Core 0.75 … 35 mm², 4 - Multi-Wired 0.75 … 10 mm²
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)32 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 5.6 W
Overvoltage CategoryIII
Housing MaterialInsulation Group I, RAL 7035
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings2
Built-In Depth (t2)78 mm
Mounting PositionAny
StandardsIEC 61009-1, EN 61009-1, EN 61009-2-1
