How can I get a price quote for ABB 2CCF019858R0001?

You can request a fast quote for ABB 2CCF019858R0001 from Yılsa Engineering. Reference part number YLS7IDU098FLOZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CCF019858R0001 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CCF019858R0001 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CCF019858R0001?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

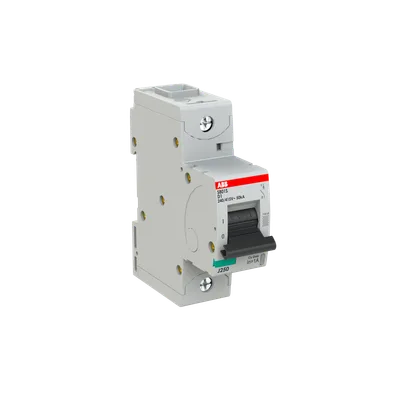

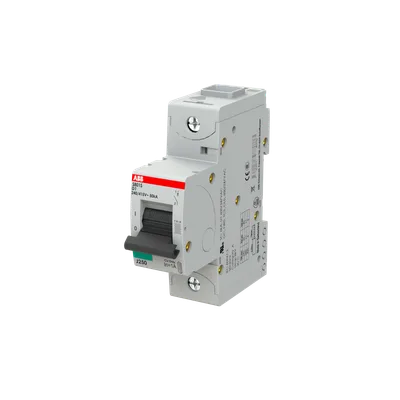

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCF019858R0001

S801S-D1 1 Pole D Characteristic 1A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB

ABBMFR # 2CCF019858R0001SKU # YLS7IDU098FLOZ

Extended Product TypeS801S-D1

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Tightening Torque3.5 N·m

Have questions?Chat on WhatsApp

About This Product

S801S-D1 1 Pole D Characteristic 1A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB

ABB 2CCF019858R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS801S-D1

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 V AC) 50 kA, (254 V AC) 30 kA, (289 / 500 V AC) 15 kA, (400 V AC) 6 kA, (125 V DC) 30 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 40 kA, (254 V AC) 22.5 kA, (289 / 500 V AC) 11 kA, (400 V AC) 4 kA, (125 V DC) 30 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Tightening Torque3.5 N·m

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 230 V AC, acc. to IEC 60947-2 400 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeAC/DC

Rated Current (In)1 A

Rated Short-Circuit Capacity(230 / 400 V AC) 25 kA

Rated Frequency (f)50/60 Hz

Power LossTotal 1.6 W, at Rated Operating Conditions per Pole 1.6 W

Overvoltage CategoryIV

Housing MaterialInsulation group I, RAL 7035

Interrupting Rating acc. to UL1077(240 V AC) 30 kA, (480Y / 277 V AC) 14 kA, (600Y / 347 V AC) 6 kA

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree3

Resistance to Vibrations1 mm 7 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz

Width in Number of Modular Spacings1.5

Built-In Depth (t2)82.5 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting PositionAny

StandardsIEC/EN 60947-2, IEC/EN 60898-1, UL 1077

Documents & CAD

Documents 23

CertificateEPD S800 Global market - ABBG-00659-V01.02-ENPDF·19.5 MB·English

CertificateEPD S800 EU market - ABBG-00658-V01.02-ENPDF·20.0 MB·English

CertificateEU declaration addendum S800 S-UC, HV, PV-SP - list of CodesPDF·238 KB·English

CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800S-UC/S804-UCZ,Made in SwitzerlandPDF·3.0 MB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800S,GB/T 14048.2-2020,Made in SwitzerlandPDF·3.3 MB·English

CertificateCCC approval - S800SPDF·2.3 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S800S-UC/S804-UCZ,Made in SwitzerlandPDF·1.5 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S800S,GB/T 14048.2-2020,Made in SwitzerlandPDF·3.6 MB·English

CertificateUL_1077_S800S_S800CPDF·315 KB·English

CertificateKC certificate for S800S and S800NPDF·33.0 MB·English

CertificateCB for S800SPDF·467 KB·English

Instruction ManualInstruction Manual S800 rangePDF·3.2 MB·English

CertificateDNV-GL for S800S, S800P, S800U-UCZ & AccessoriesPDF·195 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateCertificate RRR Made in GermanyPDF·523 KB·English

DatasheetS800S - Technical informationPDF·1.8 MB·English

CertificateESTI Certificate S800S-UCPDF·842 KB·English

CertificateCB for S800S-UCPDF·100 KB·English

CertificateVDE certificate for S800S-UCB, S800S-UCKPDF·94 KB·English

CertificateVDE certificate for S800S, S800N, S800CPDF·620 KB·English

CertificateRINA Approval - S800SPDF·1.1 MB·English

CertificateLoyds RegisterPDF·688 KB·English

CAD Files 3

2D Drawing
