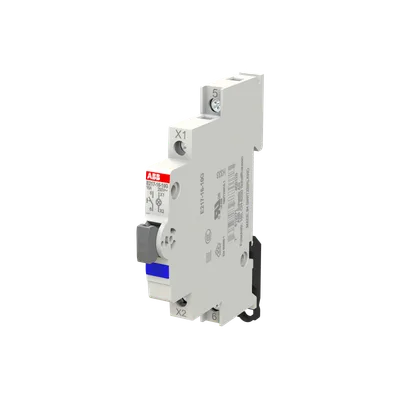

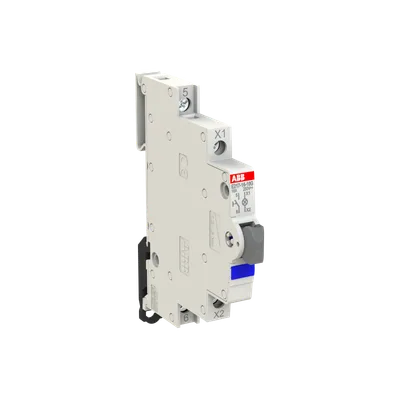

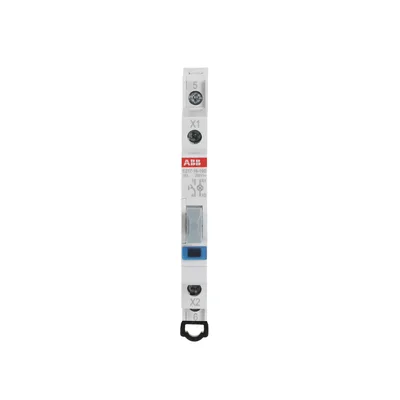

ABB 2CCA703164R0001
Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC, LED colour: blue, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width 0,5
Extended Product TypeE217-16-10G
Maximum Switching Voltage250 V
Number of Main Contacts NO1
Number of Poles1P
Number of LEDs1
Tightening Torque1.2-1.5 N·m
About This Product
Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC, LED colour: blue, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width 0,5
ABB 2CCA703164R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeE217-16-10G
Maximum Switching Voltage250 V
Number of Main Contacts NO1
Number of Poles1P
Number of LEDs1
Tightening Torque1.2-1.5 N·m
Switch TypeDouble Interrupting Contacts
Material of ConductorCopper
Lamp ColorBlue
Connecting CapacitySolid 1x1…6 mm², Solid 2x2.5 mm², Flexible 1x0.75…2x2.5 mm²
Rated Voltage (Ur)Lamp 230 ... 250 V
Rated Operational Voltageacc. to EN 250 V AC, acc. to UL 508 240 V AC
Voltage Range115 ... 250 V AC
Auxiliary Voltage AC/DCLED Indicator 115...250 V AC
Rated Current (In)16 A
Rated Frequency (f)50/60 Hz
Power LossTotal 1.1 W
Power Watt1.5 W
Number of Contacts NO1
ColorBlue
Control Element ColorGrey
Ambient Air TemperatureOperation -25...+55 °C, Storage -40...+70 °C
Degree of ProtectionIP20
Width in Number of Modular Spacings0.5
Built-In Depth (t2)68 mm
StandardsEN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 60669-1, VDE 0632-1, UL508
