How can I get a price quote for ABB 2CCA703011R0001?

You can request a fast quote for ABB 2CCA703011R0001 from Yılsa Engineering. Reference part number YLSQGCIIQO4TXG9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CCA703011R0001 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CCA703011R0001 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CCA703011R0001?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

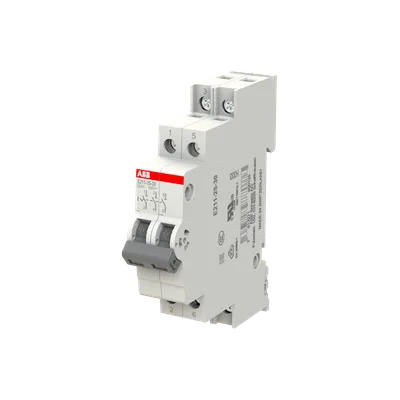

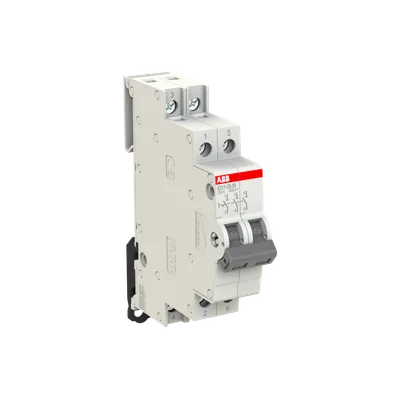

ABB 2CCA703011R0001

On-Off switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25/32 A, 250/400 VACPDC, Contacts: 1 NO/2 NO/3 NO/4 NO, Module width: 0,5/1

ABBMFR # 2CCA703011R0001SKU # YLSQGCIIQO4TXG9

Extended Product TypeE211-25-30

Contact Position IndicationON / OFF

Number of Main Contacts NO3

Number of Poles3P

Tightening Torque1.2-1.5 N·m

Switch TypeDouble Interrupting Contacts

Have questions?Chat on WhatsApp

About This Product

On-Off switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25/32 A, 250/400 VACPDC, Contacts: 1 NO/2 NO/3 NO/4 NO, Module width: 0,5/1

ABB 2CCA703011R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE211-25-30

Rated Service Short-Circuit Breaking Capacity (Ics)3 kA

Contact Position IndicationON / OFF

Number of Main Contacts NO3

Number of Poles3P

Tightening Torque1.2-1.5 N·m

Utilization CategorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A), Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A)

Switch TypeDouble Interrupting Contacts

Material of ConductorCopper

Cover ColorGrey

Connecting CapacitySolid 1x1…6 mm², Solid 2x2.5 mm², Flexible 1x0.75…2x2.5 mm²

Rated Operational Current AC-22A (Ie)(400 V) 25 A

Rated Operational Current DC-22A (Ie)(50 V DC) 25 A, (200 V DC) 2 A

Short-Circuit Current Rating (SCCR)3 kA

Rated Voltage (Ur)Minimum 400 V

Rated Operational Voltageacc. to EN 250/400 V AC, acc. to UL 508 240 V AC

Rated Impulse Withstand Voltage (Uimp)6 kV

Input Voltage TypeAC

Rated Current (In)25 A
