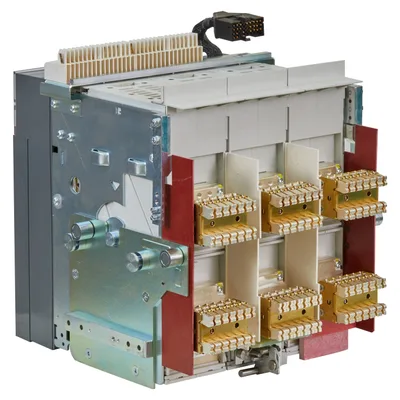

ABB 1SDA118831R1

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 1SDA118831R1

Direct Replacement Legrand DMX-H to E2.2N 2000 accessorized version 3p

ABBMFR # 1SDA118831R1SKU # YLS9IQHYKE1WMY8

Extended Product TypeDR DMX-H to E2.2N 2000 acc. 3p

Number of Poles3P

VersionW

Configuration TypeLoose or configurable

Sub-typeE2.2

Short-Circuit Performance LevelN

Share

Have questions?Chat on WhatsApp

About This Product

Direct Replacement Legrand DMX-H to E2.2N 2000 accessorized version 3p

ABB 1SDA118831R1

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDR DMX-H to E2.2N 2000 acc. 3p

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 65 kA, (500 V AC) 65 kA, (600 V AC) 50 kA, (690 V AC) 40 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 65 kA, (500 V AC) 65 kA, (600 V AC) 50 kA, (690 V AC) 40 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %

Number of Poles3P

VersionW

Configuration TypeLoose or configurable

Product TypeDirect Replacement Legrand DMX to Emax 2 - Circuit Breaker

Sub-typeE2.2

Short-Circuit Performance LevelN

Current TypeAC

Rated Voltage (Ur)690 V

Rated Operational Voltage690 V AC

Rated Current (In)2000 A

Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA

StandardsIEC

Product Main TypeDirect Replacement retrofit kit

Documents & CAD

Documents 5

Instruction ManualRetrofit Accessory: Ekip Cartridge DR GE Retrofits to Emax 2PDF·1.6 MB·English

Instruction ManualRetrofit Accessory: Interlock Adaptation Kit DR GE M-PACT to Emax 2PDF·6.8 MB·English

CertificateDR Mpact, DMX, Megabreak - Emax 2_EoL InstructionsPDF·345 KB·English

CertificateDR Mpact to Emax2 EcoSolution Product profilePDF·324 KB·English

CertificateEPD_Report_DR MPACT, DMX, Megabreak - Emax 2PDF·1.0 MB·English
