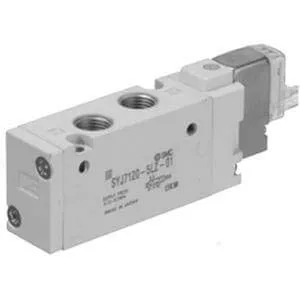

SMC SYJ7120-3LZ-01 Solenoid Air Control Valves
SYJ 4/5 PORT SOLENOID VALVE with 110 V ac [115 V ac] Voltage
ITEM #6904febfdb5b3f8c5929f78a MFR #SYJ7120-3LZ-01 SKU #YLSLNCI6AE8GKGF
Hızlı Özellikler
Piping Type: Body Ported Subplate Included
Number Of Ports: 5
Country of Origin: JP
Number Of Positions: 2
Number Of Solenoids: Single
Solenoid Supply Voltage: 110-115 V ac
Genel Bakış
SYJ 4/5 PORT SOLENOID VALVE with 110 V ac [115 V ac] Voltage
Özellikler ve Avantajlar
- Fluid: air
- Operating pressure range: 0.1 - 0.7MPa
- Cv factor: body ported range 0.48 - 0.6;base mounted 0.7
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Ambient & fluid temp: max. 50° C
Teknik Özellikler
Piping Type Body Ported Subplate Included
Number Of Ports 5
Country of Origin JP
Number Of Positions 2
Number Of Solenoids Single
Solenoid Supply Voltage 110-115 V ac
Solenoid Supply Frequency 50/60 Hz
Solenoid Electrical Entry L Plug
Flow Coefficient Cv Flow Factor Kv 0.58 (P to A/B) Cv, 0.63 (A/B to EA/EB) Cv
Manual Operation Type Non-Locking Push
Operating Temperature Range 14 to 122 °F
Maximum Operating Pressure 101 psi
Seal Material Rubber
Operating Medium Air
Flow Direction 4-Way
Port Sizes 1/8 BSPT
Standards Met IEC 60529, JIS B 8375-1981, JIS
Actuation Piloted Solenoid
Body Material Aluminum
Overall Height 38.5 mm
Overall Length 94.1 mm
Overall Width 18 mm
Response Time ≤30 ms
Solenoid Allowable Voltage Fluct ±10 %
Solenoid Power Consumption 0.89 @ 110 V ac VA, 0.97 @ 115 V ac VA
Sonic Conductance (C) 2.2 (P to A/B) dm³/(s.bar), 2.4 (A/B to EA/EB) dm³/(s.bar)
Valve Function Spool
Body Option Pilot valve individual exhaust for the pilot valve
Series SYJ
