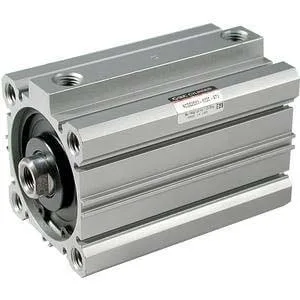

SMC NCQ2A25-50DM-XB6 Air Cylinders
Compact Cylinder, NCQ2
ITEM #6904bdefcdc3bc9ad23efe4c MFR #NCQ2A25-50DM-XB6 SKU #YLSYYC5P2R70LYQ
Hızlı Özellikler
Compact Cylinder Type: Standard
Bore Diameter: 25 mm
Country of Origin: US
Additional Details: Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
Stroke: 50 mm
Piston Action: Double-Acting
Genel Bakış
SMC NCQ2A25-50DM-XB6 (Compact Cylinder, NCQ2), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. SMC NCQ2A25-50DM-XB6 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Özellikler ve Avantajlar
- Double acting single rod
- XB6 and XB7 bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- XB14 bore sizes (mm): 16, 20, 25, 32, 40, 50, 63
- Mounting include: Through hole (standard), threaded, clevis, foot, head flange, and rod flange
- Low temperature option (XB7) temperature range -40°F to 158°F
- High temperature option (XB6) temperature range 10°F to 302°F
- Heat resistant auto switch option (XB14) temperature range 0°F to 302°F
Teknik Özellikler
Compact Cylinder Type Standard
Bore Diameter 25 mm
Country of Origin US
Additional Details Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
Stroke 50 mm
Piston Action Double-Acting
Rod Type Single Rod
Rod Size / Thread 1/4-28 Male UNF
Port Size M5x0.8
Cushion Type None
Proof Pressure +217 psi
Operating Pressure Range +7.25 to +145 psi
Push Force At 100 Psi 76 lbf
Pull Force At 100 Psi 58.5 lbf
Operating Temperature Range -10 to +150 °C
Standards Met JIS Class 2
Overall Length 87 mm
Overall Width 40 mm
Overall Height 40 mm
Options Heat Resistant
Cylinder Series NCQ2
Manufacturer Catalog http://content2.smcetech.com/pdf/NCQ2_CQ2.pdf
Maximum Operating Pressure +145 psi
Minimum Operating Pressure +7.25 psi
Port Gender Female
Port Thread Standard ISO
Rod Gender Male
Mounting Type Both Ends Tapped
Rod Size 1/4-28 in
Rod Thread Standard UNF
Series NCQ2
Product Type Compact Air Cylinders
