Siemens S55661-J124

Ürün Hakkında

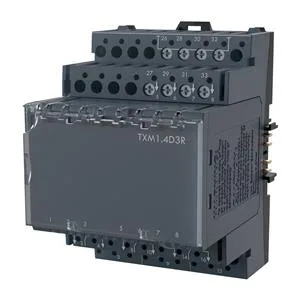

TXM1.4D3R - 4 Digital Input and 3 Relay Output Module. 4 digital input, signaling per input with three-colored LED (green, yellow, red), without local operation. 4 DI, individually configurable as: • Message signal • Message impulse with storage functions • Counter impulse for up to a maximum of 10 Hertz 3 outputs signaled with green LED, without local operation. 3 DO (relay switch), individually configurable as: • Continuous or impulse contact • Single-stage (Note: no multi-stage steps / pulse as supported by TXM1.6R) • Three-point positioning output with internal stroke model • Switching voltage AC 12...250 V / DC 12...30 V • Switching current max. 4 A Hardware bolting is by means of external wiring the two-way contacts. For use with the PXC4, PXC5.E24, PXC7.E400 automation stations Additional info - Colored LEDs

Siemens S55661-J124

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
