Siemens S55563-F159

Ürün Hakkında

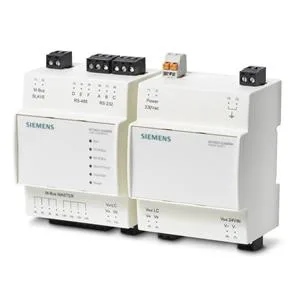

WTX631-GA0090 - M-bus Level Converter/Repeater 250. The level converter is a communications interface for reading data from up to 250 M-bus devices (simple M-bus loads). It consists of a level converter/repeater and the associated power supply. It can be used with the IoT gateway WTV776.., PXC devices, other M-bus read / configuration systems The data is read: - Locally with the ACT531 PC software via the RS-232 interface - Via an M-bus master (WTV776 or predecessor) over line M1M2 (repeater) - Via an M-bus master (WTV776 or predecessor) over line ABC (level converter) - Via Desigo CC over an RS-232 or RS-485 interface Up to six level converters can be connected in parallel to a WTV776 on an M-bus network. Up to six level converters (max. five repeaters) can be connected in series to bridge large distances. Up to 250 M-bus devices can be connected to each level converter. The level converter can be used: - As a single component on an M-bus network with up to 250 M-bus devices - To extend an M-bus network to up to six level converters connected in parallel - As a power supply for the WTV776 - As a slave at the optional IoT gateway for remote data reading Mounting instructions for the level converter are included in the following languages: Bulgarian, German, English, Finnish, French, Greek, Italian, Croatian, Lithuanian, Dutch, Norwegian, Polish, Slovakian, Slovenian, Spanish, Czech, Turkish, and Hungarian

Siemens S55563-F159

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
