Siemens S55561-F126

Ürün Hakkında

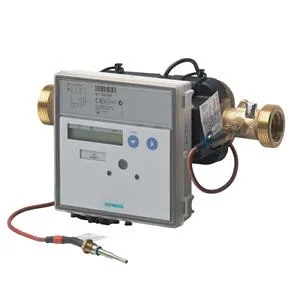

UH50-C50-00 - Ultrasonic heat/cooling energy meter, Qp = 6 m3/h, wall-mounted, mounting length 260 mm, connection thread G 1 1/4", sensor DS M10x1 mm x 38 mm. The heat meter UH50-A.. or the combined heat/cold meter UH50-C. measures the volume flow statically by means of an ultrasonic measuring principle and is a measuring device for the physically correct recording of energy consumption. The amount of heat and cold is recorded separately and can be read out locally or via remote query. The device consists of a flow measuring unit and a calculator. The calculator is already equipped with two sensors, which can be replaced if necessary. The device is delivered without a power supply and without a communication module as standard. These must be ordered separately and used on site. The UH50.. is used for heat consumption measurement in local and district heating networks as well as in apartment buildings. It is also suitable for cold measurement (alone or combined with heat quantity measurement) or for pure flow measurement in systems with water. The UH50.. must not be used to measure drinking water. It is not suitable for systems with water-glycol mixtures. Please note that national approvals for the billing of cooling energy may have to be considered for combined heating/cooling energy meters. Additional information Calculator type: Split unit with a hardwired control cable of 1.5 m. Connection sensor: The sensors can be replaced; Return sensor is integrated in the volume measuring part (internally directly submerged). The instructions are included with the meters in the following languages: Bulgarian, Chinese, Croatian, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Russian, Slovak, Slovenian, Spanish and Turkish

Siemens S55561-F126

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Aksesuarlar 10

Siemens S55561-F126 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
