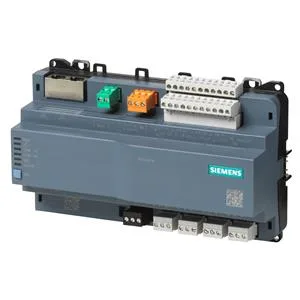

Siemens S55375-C150

Ürün Hakkında

PXC4.E16-2 - Automation Station, 16 Input/Outputs, Modbus, BACnet/IP. Freely programmable automation station for HVAC and building service plants. System functions (alarming, scheduling, trending, access protection) Freely programmable (close resemblance to CEN standard 11312). All function blocks, available in libraries, can be graphically connected. Total 16 onboard IO’s: 12 universal input/outputs and 4 relay outputs Allows for the direct connection of I/O modules TXM. Up to 4 TXM modules (depending on the type) can be powered directly. Maximal number of inputs and outputs (onboard and TXM) is 50. Integration of up to 40 Modbus data points Direct connection of field devices; the automation station provides power supply for inputs and outputs as well as for active sensors. Battery free: Energy reserve (Supercap) to support real-time clock (7 days) Engineering and commissioning with the user-friendly tool ABT Site using graphical function charts Generic object viewer for device local datapoints via an embedded web interface BTL tested BACnet communication on IP (BACnet/IP and BACnet/SC) or BACnet MS/TP, in compliance with the BACnet standard including B-BC profile (Rev. refer to data sheet) BACnet secure communication WLAN interface for engineering and commissioning Compatible I/O extension modules: TXM1.8D TXM1.16D TXM1.8U TXM1.8U-ML TXM1.8X TXM1.8X-ML TXM1.6R TXM1.6R-M TXM1.8P TXM1.8T TXM1.4D3R

Siemens S55375-C150

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
