Siemens
3MV8100-0MB00
MFR #3MV8100-0MB00
SKU #YLSTQVYRHTPPWXE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

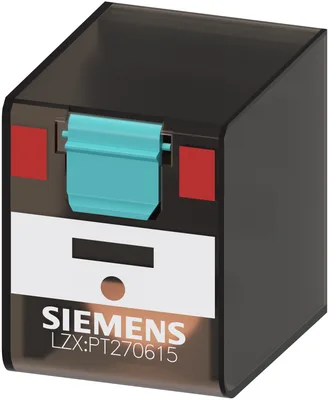

Siemens LZX:PT270730
geçmeli röle, 2 change-over contacts 230 V AC, also için LZS sockets
product brand nameSIRIUS
product designationPlug-in relay
product type designationLZX
operating frequency without load36.000 1/h
operating frequency with load360 1/h
switching behaviormonostable
Ürün Hakkında
geçmeli röle, 2 change-over contacts 230 V AC, also için LZS sockets
Siemens LZX:PT270730
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationPlug-in relay
product type designationLZX
General technical data
percental drop-out voltage related to the input voltage30 %
shock resistance according to IEC 60068-2-275 g / 11 ms
vibration resistance according to IEC 60068-2-630... 150 Hz: 4 g
operating frequency without load36.000 1/h
operating frequency with load360 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical20.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical180.000
thermal current12 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
Net Weight0,03 kg
Control circuit/ Control
at 50 Hz rated value230 V
at 60 Hz rated value230 V
1 rated value50 Hz
2 rated value60 Hz
supply voltage frequency for auxiliary and control circuit rated value50... 60 Hz
initial value0,9
full-scale value1,1
initial value0,9
full-scale value1,1
Switching Function
design of the switching functionchangeover switch
Mechanical data
product component plug-in socketYok
design of the relay operating mechanismpoled
Auxiliary circuit
type of switching contactChange-over contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts2
at 250 V2 A
operational current at DC-13 at 24 V rated value4 A
at 24 V4 A
Main circuit
type of voltageAC
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz2 A
at 24 V4 A
Connections/ Terminals
product function removable terminalYok

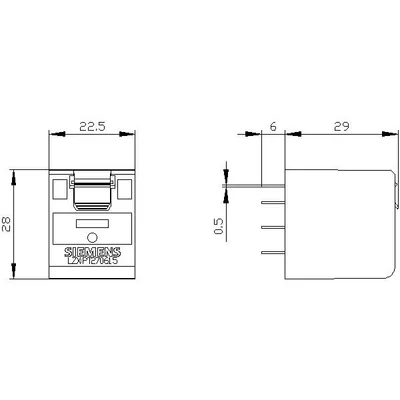

Installation/ mounting/ dimensions
mounting positionany
fastening methodbase mounting
height28 mm
width22,5 mm
depth35 mm
Ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
