Detayları Gör
Siemens
3MV8100-0MB00
MFR #3MV8100-0MB00
SKU #YLSTQVYRHTPPWXE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

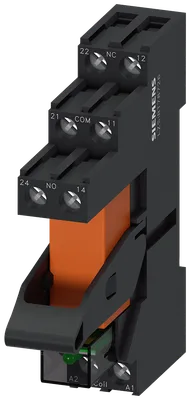

Siemens LZS:RT3B6L24-A
geçmeli röle komple ünite 1 W, 24 V DC LED modül green Plug-in socket ile safe isolation vidalı klemens
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
display version LEDVar
consumed active power0,4 W
operating frequency without load360 1/h
Ürün Hakkında
geçmeli röle komple ünite 1 W, 24 V DC LED modül green Plug-in socket ile safe isolation vidalı klemens
Siemens LZS:RT3B6L24-A
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
General technical data
display version LEDVar
consumed active power0,4 W
percental drop-out voltage related to the input voltage10 %
operating frequency without load360 1/h
operating frequency with load72.000 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical30.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current16 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
Net Weight56,25 g
Control circuit/ Control
control supply voltage at DC rated value24 V
initial value0,9
full-scale value1,4
at DC maximum8 ms
at DC maximum6 ms
Switching Function
design of the switching functionchangeover switch
Mechanical data
product component plug-in socketVar
design of the snap-on socket baseSocket with logic isolation
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A
Auxiliary circuit
type of switching contactChange-over contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts1
Main circuit
type of voltageDC
Display
display version as status display by LEDLED green
Connections/ Terminals
product function removable terminalYok
type of electrical connectionscrew terminal
solid1x (1,0... 2,5), 2x 1,0, 2x 1,5, 2x 2,5
finely stranded with core end processing1x (1,0... 1,5), 2x 1,0, 2x 1,5
for AWG cables solid1x (18... 14), 2x 18, 2x 16, 2x 14
solid1... 2,5 mm²
finely stranded with core end processing1... 1,5 mm²
solid18... 14
tightening torque with screw-type terminals0,5... 0,7 N·m
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height77 mm
width15,5 mm
depth71 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
during operation-40... +70 °C
during storage-20... +70 °C
during transport-20... +70 °C
