Siemens
3MV8100-0MB00
MFR #3MV8100-0MB00
SKU #YLSTQVYRHTPPWXE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.
Siemens LZS:PT5A5R24

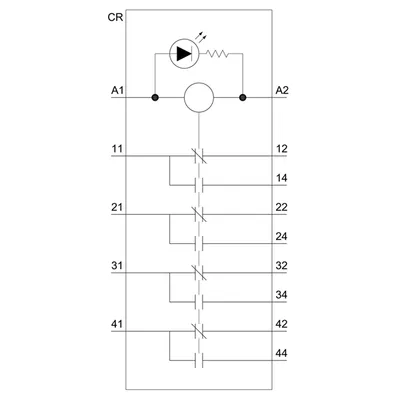

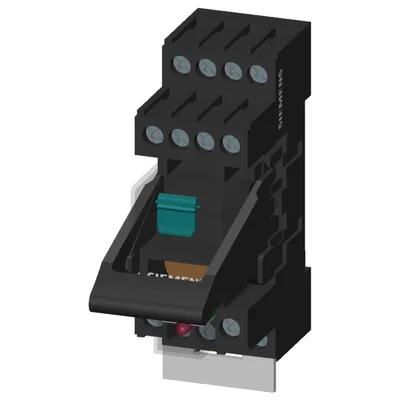

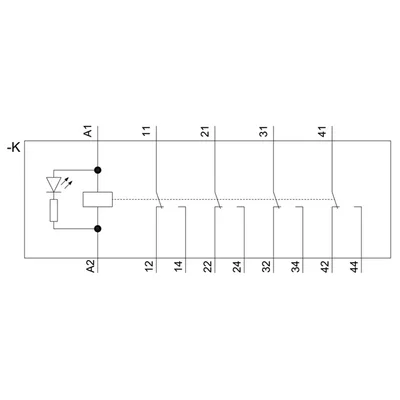

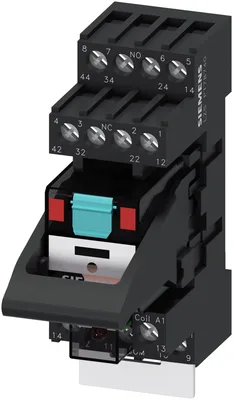

geçmeli röle komple ünite, 4 komütatör kontak, 24 V AC, LED modül red, standart plug-in socket vidalı klemens, 3,5 mm pinning
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
display version LEDVar
operating frequency without load36.000 1/h
operating frequency with load360 1/h
Ürün Hakkında
geçmeli röle komple ünite, 4 komütatör kontak, 24 V AC, LED modül red, standart plug-in socket vidalı klemens, 3,5 mm pinning
Siemens LZS:PT5A5R24
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
General technical data
display version LEDVar
percental drop-out voltage related to the input voltage30 %
operating frequency without load36.000 1/h
operating frequency with load360 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical20.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical250.000
thermal current6 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
Net Weight99 g
Control circuit/ Control
at 50 Hz rated value24 V
at 60 Hz rated value24 V
1 rated value50 Hz
2 rated value60 Hz
supply voltage frequency for auxiliary and control circuit rated value50... 60 Hz
initial value0,9
full-scale value1,1
initial value0,9
full-scale value1,1
Switching Function
design of the switching functionchangeover switch
Mechanical data
product component plug-in socketVar
design of the snap-on socket baseStandard socket
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A
Auxiliary circuit
type of switching contactChange-over contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts4
at 250 V2 A
operational current at DC-13 at 24 V rated value4 A
at 24 V4 A
Main circuit
type of voltageAC
at 24 V4 A
Display
display version as status display by LEDLED red
Connections/ Terminals
product function removable terminalYok
type of electrical connectionscrew terminal
solid1x (1,0... 2,5), 2x 1,0, 2x 1,5, 2x 2,5
finely stranded with core end processing1x (1,0... 1,5), 2x 1,0, 2x 1,5
for AWG cables solid1x (18... 14), 2x 18, 2x 16, 2x 14
solid1... 2,5 mm²
finely stranded with core end processing1... 1,5 mm²
solid18... 14
tightening torque with screw-type terminals0,5... 0,7 N·m

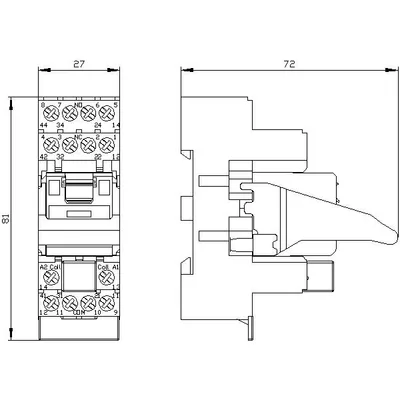

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height74 mm
width27 mm
depth72 mm
Ambient conditions
during operation-40... +70 °C
during storage-25... +70 °C
during transport-25... +70 °C
