Siemens BPZ:QAD22

Ürün Hakkında

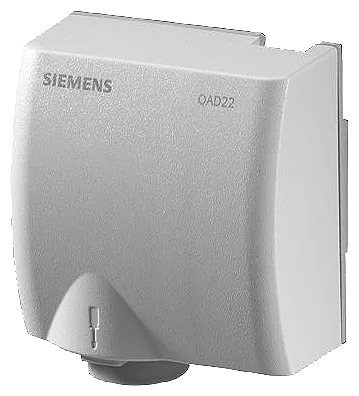

QAD22 - Clamp-on temperature sensor - LG-Ni1000 sensing element – QAD Series. The QAD22 is a clamp-on temperature sensor designed for heating, ventilation and air conditioning plants. It ensures precise measurement of temperature and works via passive sensing element LG-Ni1000. Its compact design and flexible mounting options make it ideal for acquiring the medium temperature in pipes. Key Features Output type: Passive LG-Ni1000 Measuring range: -30...130 °C Time constant: approx. 3 s Mechanical details: IP42 Mounting type: Clamp-on (pipes Ø 15...140 mm) Dimensions (W x H x D): 60 x 67 x 43 mm Typical Applications Control or limitation of the flow temperature Limitation of the return temperature Control of the DHW temperature System Compatibility Desigo through passive sensor input Synco through passive sensor input Climatix through passive sensor input 3rd party via passive sensor input

Siemens BPZ:QAD22

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
