Siemens BPZ:500-035600

Ürün Hakkında

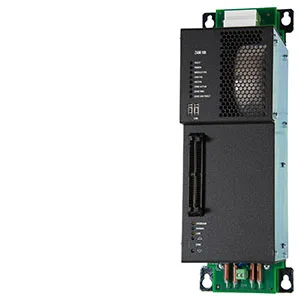

500-035600 - Zone AMP Module -180 Watts. Designed for use in a Siemens Modular (or FireFinder) system, Model ZAM-180 is a combination 180 Watt amplifier/speaker zone with Style Y or Z speaker zone wiring is supported as well as split zone (A/B) speaker zone wiring configurations on Style Y. Model ZAM-180 can be configured to provide 150 watts of audio at 25VRMS, 180 watts of audio at 70VRMS or 165 watts of audio at 100 VRMS. It mounts in one (1) module space on a Model CAB-MP mounting plate. Model ZAM-180 is capable of amplifying any one (1) of the eight (8) digital audio channels that are transmitted from a Model DAC-NET (Digital Audio Card) via the digital-audio bus ASI (Audio Serial Interface). Model ZAM-180 is supervised for functionality, and can be used as a single, 180 Watt speaker zone for one (1) to eight (8) channel applications or as a bulk amplifier for one (1) or two (2) channel applications feeding high-level audio to Model ZIC-4A or Model ZIC-8B. The speaker lines are supervised for open, short circuit and ground fault. They are supervised in both the active and inactive states. To provide amplifier backup, additional Model ZAM-180 can be used to achieve the desired amplifier backup ratio of 1 to 1 or 1 to many. Model ZAM-180 takes one (1) sub-address of the DAC-NET, and receives its control and communication data from a Model DAC-NET via the CAN bus. Model ZAM-180 contains an inherent degrade-mode backup tone (Slow Whoop) which serves as a secondary backup to the primary backup tone or digital message provided by the DAC-NET. A local audio input is provided to connect an external audio source. The local audio input is activated via an external contact, and has the lowest priority of all signals.

Siemens BPZ:500-035600

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
