Siemens BPZ:500-033250

Ürün Hakkında

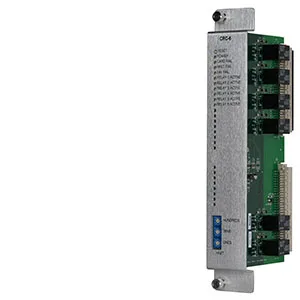

500-033250 - Controllable Relay Card. Designed for use with Siemens Modular systems and FireFinder XLS fire alarm control panels (FACPs), the Controllable Relay Card (Model CRC-6) is designed to provide auxiliary control of building functions such as door holder release, elevator capture, smoke control, lock release, etc. Each Model CRC-6 plugs into a single slot found on either a Model CC-5 or Model CC-2 Card Cage, providing six (6) fully programmable relays. Each relay contains one (1) set of single-pole, double-throw (SPDT) contacts rated at 4A at 30VDC / 120VAC resistive and 3.5 amps 120VAC inductive (0.6 P.F.). All relay coils are supervised to ensure proper operation. Individual relays can be automatically activated or deactivated through control by event and time based logic contained in the Operator Interface. Each relay may also be either manually controlled or disarmed. The operator interface will indicate the affected relay and the partial-system disable indicator will illuminate until the relay is returned to an Armed condition. Model CRC-6 has on-board LEDs for system status and troubleshooting. Indication of power, communication, internal operation, and 24V power source are provided, as well as indication of each relay’s operation and status. Programming a Model CRC-6 is performed using the Siemens licensed custom-configuration software, ZEUS. Product is UL, ULC Listed.

Siemens BPZ:500-033250

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
