Siemens BPZ:500-033100

Ürün Hakkında

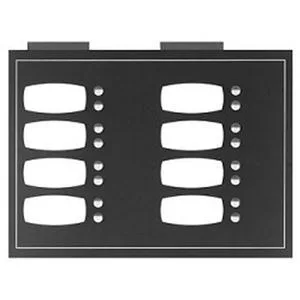

LCM-8 - LED Annunciator Module (8 LED Sets). Designed for use in Siemens Modular (or FireFinder) systems, Model LCM-8 is an option module which provides LED annunciation of system activity. Each LCM-8 module contains eight (8) groups of two (2) LEDs, each of which can be assigned to desired outputs using the ZEUS programming software. Eight (8) LEDs are dual-color capable of being lighted either RED or GREEN flashing or steady. The remaining LEDs are AMBER flashing or steady. A space is provided for labeling of LED functions. The label slides behind a clear protective membrane. The dimensions are identical to a Model SCM-8, and is mounted on the same hinged panel as a part of a Siemens Modular (or FireFinder XLS) system. Any combination of a Model SCM-8, LCM-8 or FCM-6 module may be mounted onto a Model ID-MP. A six (6) conductor cable is supplied for interconnection of the modules. Model SCM-8, LCM-8, and FCM-6 can be remotely mounted up to 1000 feet (304.8 meters) from main enclosure. Models REMBOX2 and REMBOX4 lobby enclosures are required for remote Models SCM-8, LCM-8 and FCM-6 mounting. A CSB sounder is optionally available for switch audible feedback for remote mounting applications.

Siemens BPZ:500-033100

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
