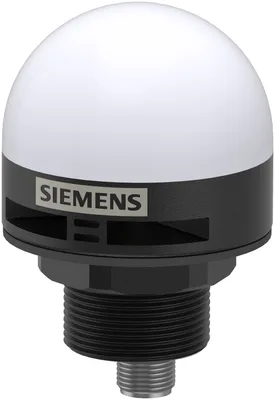

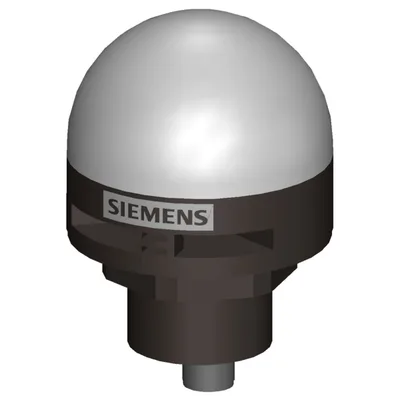

Siemens 8WD5620-5JH36
electronically configurable dahili signal lamba, conventional, ile acoustics, M12 plug, 5-pole
product brand nameSIRIUS
design of the productconventional dahili signal lamp
number of light segments1
type of parameterizationSoftware
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
Ürün Hakkında
electronically configurable dahili signal lamba, conventional, ile acoustics, M12 plug, 5-pole
Siemens 8WD5620-5JH36
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationElectronically configurable dahili signal lamp
design of the productconventional dahili signal lamp
General technical data
number of light segments1
product function adjustable optical signalVar
product function adjustable acoustic signalVar
type of interface for parameter assignmentUSB-C
type of parameterizationSoftware
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage10 %
insulation voltage (Ui) rated value50 V
impulse withstand voltage (Uimp) rated value330 V
operational current rated value70 mA
consumed current minimum25 mA
inrush current rated value660 mA
design of external power supply requiredSELV/PELV functional extra low voltage
overvoltage categoryI
degree of pollution3
operating resource protection class according to IEC 61140III
Safety related data
MTTFd341 a
Lamp
type of light sourceRGB-LED, multicolor
light intensity0,5... 3,7 cd
signal designpin 1: green / pin 2: blue / pin 4: red / pin 1 & pin 2: turquoise / pin 1 & pin 4: yellow / pin 2 & pin 4: violet / pin 1 & pin 2 & pin 4: white / pin 5: acoustics
number of colors adjustable minimum1.000.000
flash frequency1 Hz
11 Hz
22 Hz
33 Hz
product component light sourceVar
service life of LED50.000 h
color of lensmilky
design of the optical signalblink, flash, continuous, double flash, triple flash, pulsating
product function adjustable luminous intensityVar
number of signal stages preset1
11 Hz
22 Hz
33 Hz
Acoustic signal
type of acoustic signalmulti-tone
type of acoustic signal presetcontinuous tone
service life of acoustic signal device5.000 h
loudness level65... 85 dB
loudness level preset85 dB
number of sounds adjustable10
tone frequency preset3,5 kHz
tone frequency of alternating tone2,3... 3,6 kHz
Communication
protocol is supported IO-Link protocolYok

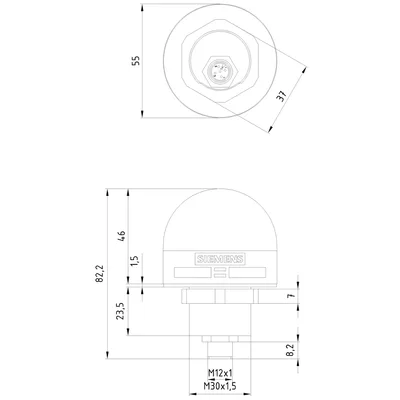

Enclosure
height82 mm
width55 mm
outer diameter55 mm
materialPC
color of the enclosureblack
fastening methodbase mounting
protection class IPIP65, IP69k
degree of protection NEMA rating4/4X
type of electrical connectionM12 plug, 5-pole
Ambient conditions
ambient temperature during operation-20... +50 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
Siemens eco profile (SEP)Siemens EcoTech
