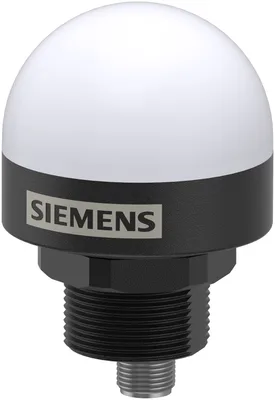

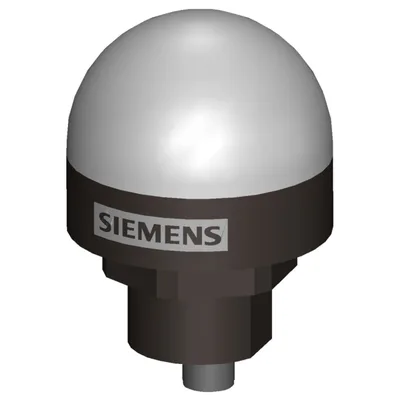

Siemens 8WD5620-5HH46
electronically configurable integrated signal lamp, IO-Link, without acoustics, M12 plug, 4-pole
product brand nameSIRIUS
design of the productdahili signal lamp for IO-Link
number of light segments1
type of parameterizationIODD
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
Ürün Hakkında
electronically configurable integrated signal lamp, IO-Link, without acoustics, M12 plug, 4-pole
Siemens 8WD5620-5HH46
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationElectronically configurable dahili signal lamp
design of the productdahili signal lamp for IO-Link
General technical data
number of light segments1
product function adjustable optical signalVar
type of interface for parameter assignmentIO-Link
type of parameterizationIODD
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
operating voltage at DC rated value18... 30 V
relative positive tolerance of the operating voltage0 %
relative negative tolerance of the operating voltage0 %
insulation voltage (Ui) rated value50 V
impulse withstand voltage (Uimp) rated value330 V
operational current rated value55 mA
consumed current minimum10 mA
inrush current rated value350 mA
design of external power supply requiredSELV/PELV functional extra low voltage
overvoltage categoryI
degree of pollution3
operating resource protection class according to IEC 61140III
Safety related data
MTTFd541 a
Lamp
type of light sourceRGB-LED, multicolor
light intensity0,5... 3,9 cd
number of colors adjustable minimum1.000.000
flash frequency1 Hz
11 Hz
22 Hz
33 Hz
product component light sourceVar
service life of LED50.000 h
color of lensmilky
design of the optical signalblink, flash, continuous, double flash, triple flash, pulsating
product function adjustable luminous intensityVar
number of signal stages preset1
11 Hz
22 Hz
33 Hz
Communication
operating mode at input/ output link24-bit input / 64-bit output
type of IO-Link device connectabledahili signal lamp
IO-Link transfer rateCom 2
protocol is supported IO-Link protocolVar
number of IO-Link ports1
point-to-point cycle time between master and IO-Link device minimum5 ms

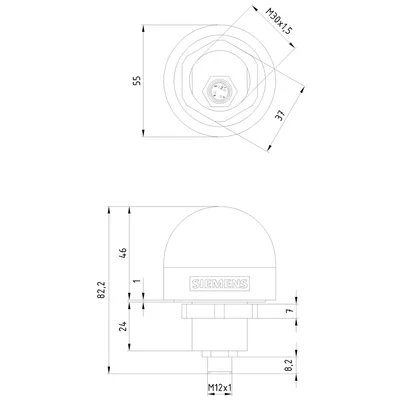

Enclosure
height82 mm
width55 mm
outer diameter55 mm
materialPC
color of the enclosureblack
fastening methodbase mounting
protection class IPIP65, IP69k
degree of protection NEMA rating4/4X
type of electrical connectionM12 connector, 4-pole
Ambient conditions
ambient temperature during operation-20... +50 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
Siemens eco profile (SEP)Siemens EcoTech
