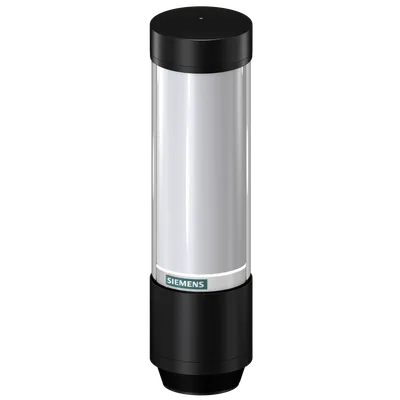

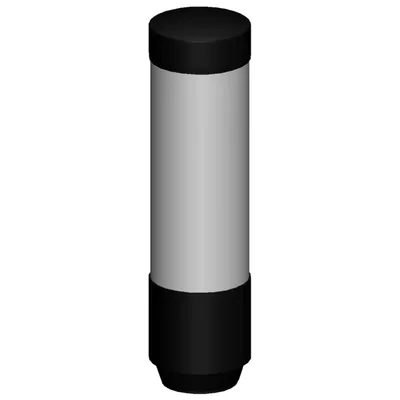

Siemens 8WD4613-5HH47
electronically configurable signaling column, IO-Link, 9 segments, without acoustics, M12 plug, 4-pole
product brand nameSIRIUS
design of the productsignaling column for IO-Link
number of light segments9
type of parameterizationIODD
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
Ürün Hakkında
electronically configurable signaling column, IO-Link, 9 segments, without acoustics, M12 plug, 4-pole
Siemens 8WD4613-5HH47
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationElectronically configurable signaling column
design of the productsignaling column for IO-Link
General technical data
number of light segments9
product function adjustable optical signalVar
product function adjustable acoustic signalYok
type of interface for parameter assignmentIO-Link
type of parameterizationIODD
type of voltage of the operating voltageDC
operating voltage at DC rated value24 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
insulation voltage (Ui) rated value50 V
impulse withstand voltage (Uimp) rated value330 V
operational current rated value335 mA
consumed current minimum65 mA
inrush current rated value800 mA
design of external power supply requiredSELV/PELV functional extra low voltage
overvoltage categoryI
degree of pollution3
reference code according to IEC 81346-2:2019P
operating resource protection class according to IEC 61140III
Safety related data
MTTFd45 a
Lamp
type of light sourceRGB-LED, multicolor
light intensity1,8... 7 cd
design of the signal stages preset 1Green/Continuous light/3 light segments
number of colors adjustable minimum1.000.000
flash frequency1 Hz
11 Hz
22 Hz
33 Hz
product component light sourceVar
service life of LED50.000 h
color of lensclear
design of the optical signalblink, flash, continuous, double flash, triple flash, pulsating
product function adjustable luminous intensityVar
number of signal stages preset3
1Green/Continuous light/3 light segments
2Yellow/Continuous light/3 light segments
3Red/Continuous light/3 light segments
11 Hz
22 Hz
33 Hz
Communication
operating mode at input/ output link24-bit output
type of IO-Link device connectablesignaling column
IO-Link transfer rateCom 3
protocol is supported IO-Link protocolVar
number of IO-Link ports1
point-to-point cycle time between master and IO-Link device minimum6 ms

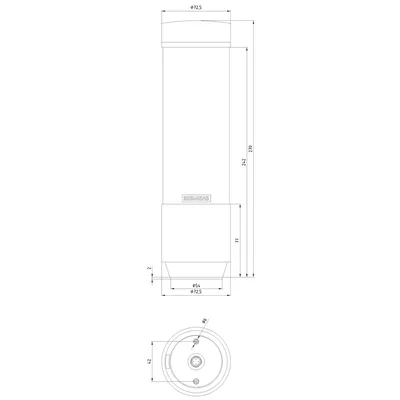

Enclosure
height271 mm
width72 mm
outer diameter72 mm
materialPC
color of the enclosureblack
fastening methodfloor mounting, pipe mounting, angle mounting
protection class IPIP66, IP69k
degree of protection NEMA rating4/4X/12/13
type of electrical connectionM12 connector, 4-pole
Ambient conditions
ambient temperature during operation-30... +60 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
Siemens eco profile (SEP)Siemens EcoTech
Aksesuarlar 20
Siemens 8WD4613-5HH47 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 8WD4208-0EF | Aksesuar | |
| 8WD4308-0DA | Aksesuar | |
| 8WD4308-0ED | Aksesuar | |
| 8WD4308-0EB | Aksesuar | |
| 8WD4618-0DA | Aksesuar | |
| 8WD4618-0CA | Aksesuar | |
| 8WD4408-0FA | Aksesuar | |
| 8WD4308-0DE | Aksesuar | |
| 8WD4308-0EE | Aksesuar | |
| 8WD4308-0DC | Aksesuar | |
| 8WD4208-0CA | Aksesuar | |
| 8WD4308-0DD | Aksesuar | |
| 8WD4308-0DB | Aksesuar | |
| 8WD4308-0EA | Aksesuar | |
| 3SX5601-2GA05 | Seçmeli zorunlu ürün | |
| 3SX5601-2GA03 | Seçmeli zorunlu ürün | |
| 3SX5601-2GA10 | Seçmeli zorunlu ürün | |
| 3SX5601-2GA15 | Seçmeli zorunlu ürün | |
| 3SX5601-3SV00-1AK3 | Seçmeli zorunlu ürün | |
| 3SX5601-3SV18 | Seçmeli zorunlu ürün |
