Siemens 7SX8000-3BB51-1CA0

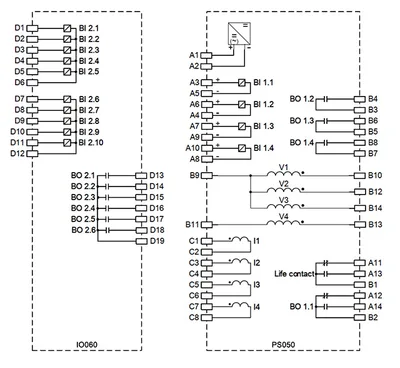

7SX800 universal protection device; BI: 14; BO: 11 (10 fast, 1 life); I: 4 (3x protection, 1x sensitive); U: 4 (standard); housing: 1/6 x 19''; 8 LEDs; 9 operating keys; Ethernet: optical; serial interface; optical; operation panel: integrated; display type: color display; front design: US; auxiliary voltage: 24 V - 250 V DC, 115 V - 230 V AC, modules: PS050 + IO060
number of function keys9
number of LEDs8
switching statisticsVar
circuit breaker monitoringVar
product feature / logic editorVar
controlVar
Ürün Hakkında
7SX800 universal protection device; BI: 14; BO: 11 (10 fast, 1 life); I: 4 (3x protection, 1x sensitive); U: 4 (standard); housing: 1/6 x 19''; 8 LEDs; 9 operating keys; Ethernet: optical; serial interface; optical; operation panel: integrated; display type: color display; front design: US; auxiliary voltage: 24 V - 250 V DC, 115 V - 230 V AC, modules: PS050 + IO060
Siemens 7SX8000-3BB51-1CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product details
number of function keys9
number of LEDs8
Product Functions
type of measured value detection / of operational measured value / standardVar
type of measured value detection / expanded / min./max. values, mean valuesVar
switching statisticsVar
circuit breaker monitoringVar
product feature / logic editorVar
controlVar
fault recording for analog and digital signalsVar
monitoringVar
number of parameter sets8
parameter set switchoverVar
circuit breaker testVar
Protection Functions
three-pole trippingVar
with blocked rotor (ANSI 14)Var
undercurrent protection (ANSI 37)Var
temperature monitoring (ANSI 38)Var
bearing temperature monitoring (ANSI 38)Var
unbalance protection (ANSI 46)Var
overcurrent-time protection negative sequence system (ANSI 46)Var
phase-rotation supervision (ANSI 47)Var
thermal overload protection (ANSI 49)Var
definite overcurrent-time protection (ANSI 50/50N)Var
Switch On To Fault (ANSI SOTF)Var
sensitive ground current protection (ANSI 50Ns)Var
intermittent ground-fault protectionVar
circuit breaker failure protection (ANSI 50BF)Var
circuit breaker backfire monitoring (ANSI 50RS)Var
dependent overcurrent-time protection (ANSI 51/51N)Var
dynamic response value changeover (ANSI 51C)Var
current unbalance protection for capacitor banks 1-phase (ANSI 60C)Var
trip-circuit supervision (ANSI 74TC)Var
automatic reclosing (ANSI 79)Var
closing lock-out (ANSI 86)Var
ground fault differential protection (ANSI 87N)Var
inrush current detectionVar
external trip initiationVar
slow-scan recorder (ANSI SSR)Var
continuous recorder (ANSI CR)Var
trend recorder (ANSI TR)Var
product conformity / according to IEEE 802.1X-port based Network Access ControlYok
Optional functionality - function points (FP) necessary
voltage-based protection functionsone-time 30 function points for voltage-based function package
voltage measurementVar
overexcitation protection (ANSI 24)Var
synchrocheck (ANSI 25)Var
undervoltage protection (ANSI 27)Var
voltage variation protection (ANSI 59R/27R)Var
reactive power-low-voltage protection / Q-U protectionVar
directional power monitoring (ANSI 32)Var
forward power supervision (ANSI 32F)Var
reverse power protection (ANSI 32R)Var
overvoltage protection negative-sequence system (ANSI 47)Var
voltage-dependent overcurrent-time protection (ANSI 51V)Var
power factor (ANSI 55)Var
overvoltage protection (ANSI 59)Var
peak overvoltage protection, 3-phase for capacitorsVar
overvoltage protection zero-sequence system (ANSI 59N)Var
measuring voltage failure detection (ANSI 60FL)Var
directional overcurrent-time protection, phases (ANSI 67)Var
directional ground fault protection (ANSI 67N)Var
directional sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 67Ns)Var
sensitive ground-fault detection for resonant-grounded systems and isolated systems according to the admittance method (ANSI 67Ns)Var
sensitive ground-fault detection for resonant-grounded systems and isolated systems via pointer measurement with 3rd or 5th harmonic (ANSI 67Ns)Var
ground-fault wiper function, for transient and static ground faults in resonant-grounded systems and isolated systems (ANSI 67Ns)Var
directional intermittent ground-fault protectionVar
frequency protection (ANSI 81)Var
automatic frequency relief (ANSI 81U)Var
frequency variation protection (ANSI 81R)Var
vector step protectionVar
fault locator (ANSI FL)Var
blocked rotor monitoring (ANSI 48)Var
load step protection (ANSI 50L)Var
reclosing lockout (ANSI 66)Var
communication / Ethernetone-time 50 function points for ethernet communication package
Modbus TCPVar
IEC 61850-8-1Var
DNP3Var
IEC 60870-5-104Var
PROFINET IOVar
RSTPVar
PRPVar
HSRVar
communication / serial protocolsone-time 20 function points for serial communication package
IEC 60870-5-103Var
Modbus RTUVar
power quality assessment function / voltage unbalance20 function points
power quality assessment function / Total Demand Distortion (TDD)10 function points
power quality assessment function / 10/12 cycle values for continuous recorder25 function points
power quality assessment function / trend values for trend recorder25 function points
power quality assessment function / flicker values for trend recorder25 function points
voltage supply deviation / requirement / voltage-based function package30 function points
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of digital inputs / maximum14
number of digital outputs / incl. signaling contact / maximum11
number of voltage inputs / maximum4
number of current inputs / maximum4
product component / with RTD unit connectionVar
Time synchronization
type of time synchronizationSNTP, protocol

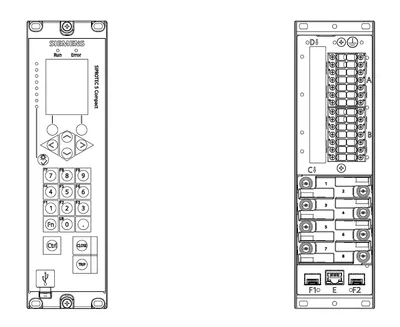

Mechanical Design
width74 mm
height266 mm
depth229 mm
design of the displayGraphic Display
product feature / plug-in terminal blocksVar
Environmental conditions
ambient temperature / during operation / maximum55 °C
Aksesuarlar 52
Siemens 7SX8000-3BB51-1CA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
