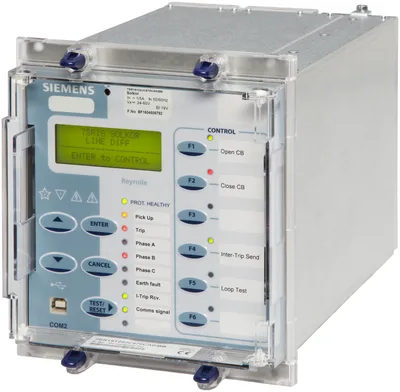

Siemens 7SR1813-2MC87-0CA0
Solkor 7SR18 differential protection, E6 case size, 6 binary inputs, 8 binary outputs, 18 LEDs, measuring input: 4 CTs (1A/5A), 3 VTs (40-160 V), 24-250 V DC, 100 - 230 V AC, binary input threshold 19 V DC, signal: optical fibre link (1300 nm) (LC connection) 40 km, communication interface: USB front, RS485 rear, optical ethernet duplex (x2) rear port, IEC 60870-5-103 + Modbus RTU + DNP3 (user selectable) + IEC 61850, protection function packages: standard version
product feature / conformal coatingYok
number of function keys5
number of LEDs19
switching statisticsVar
product feature / logic editorVar
controlVar
Ürün Hakkında
Solkor 7SR18 differential protection, E6 case size, 6 binary inputs, 8 binary outputs, 18 LEDs, measuring input: 4 CTs (1A/5A), 3 VTs (40-160 V), 24-250 V DC, 100 - 230 V AC, binary input threshold 19 V DC, signal: optical fibre link (1300 nm) (LC connection) 40 km, communication interface: USB front, RS485 rear, optical ethernet duplex (x2) rear port, IEC 60870-5-103 + Modbus RTU + DNP3 (user selectable) + IEC 61850, protection function packages: standard version
Siemens 7SR1813-2MC87-0CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product details
product feature / conformal coatingYok
number of function keys5
number of LEDs19
Product Functions
type of measured value detection / of operational measured value / standardVar
type of measured value detection / expanded / min./max. values, mean valuesVar
switching statisticsVar
product feature / logic editorVar
controlVar
fault recording for analog and digital signalsVar
sequence-of-events recorderVar
monitoringVar
number of parameter sets4
Protection Functions
three-pole trippingVar
undercurrent protection (ANSI 37)Var
overcurrent-time protection negative sequence system (ANSI 46)Var
thermal overload protection (ANSI 49)Var
definite overcurrent-time protection (ANSI 50/50N)Var
Switch On To Fault (ANSI SOTF)Var
circuit breaker failure protection (ANSI 50BF)Var
dependent overcurrent-time protection (ANSI 51/51N)Var
dynamic response value changeover (ANSI 51C)Var
voltage-dependent overcurrent-time protection (ANSI 51V)Var
directional overcurrent-time protection, phases (ANSI 67)Var
directional ground fault protection (ANSI 67N)Var
trip-circuit supervision (ANSI 74TC)Var
automatic reclosing (ANSI 79)Yok
closing lock-out (ANSI 86)Var
differential protection (ANSI 87)Var
inrush current detectionVar
external trip initiationVar
Besleme gerilimi
supply voltage / at AC100... 230 V
supply voltage / at DC24... 250 V
Inputs / Outputs
number of digital inputs / maximum6
number of digital outputs / incl. signaling contact / maximum8
number of voltage inputs / maximum3
number of current inputs / maximum4
Communication
product component / operating interface (on the front)Var
number of interfaces / according to RS 4851
number of interfaces / according to Ethernet2
number of interfaces / according to Ethernet / noteOptical LC
product component / optical interfaceVar
product component / optical interface / note40 km
protocol / is supported / IEC 61850Var
protocol / is supported / IEC 60870-5-103Var
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / DNP 3, serialVar
protocol / is supported / PRPVar
protocol / is supported / RSTPVar
protocol / is supported / HSRVar
Time synchronization
type of time synchronization1sec/1min Pulse, Serial Comms, SNTP
Mechanical Design
width155,5 mm
height168 mm
depth216,5 mm
frame size of enclosureE6
design of the displayText, 4 lines x 20 characters
product feature / plug-in terminal blocksVar
Environmental conditions
ambient temperature / during operation-10... +55 °C
Aksesuarlar 8
Siemens 7SR1813-2MC87-0CA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9CA4110-0GE00-0DC1 | Aksesuar | |
| 9CA4110-0ND00-0DH1 | Aksesuar | |
| 9CA4110-0NE00-0DH1 | Aksesuar | |
| 9CA4140-0AD00-0DA8 | Aksesuar | |
| 9CA4140-0AE00-0DA8 | Aksesuar | |
| 9CA4160-0WE00-0DA1 | Aksesuar | |
| 9CA4160-0WE00-0DA2 | Aksesuar | |
| 9CA4160-0WE00-0DA4 | Aksesuar |
