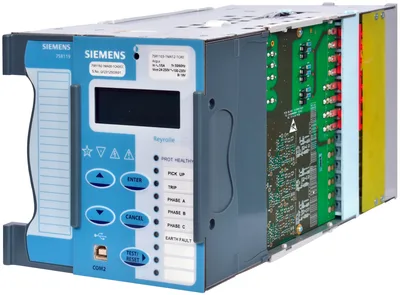

Siemens 7SR1194-3MA00-1CA0
ARGUS Non Directional Overcurrent relay housed in adapter case; Original relay: 7SG1114 - universal wiring; I/O and Fascia: RS485 rear port, USB front port/ 4 CT, 5 binary inputs/ 8 binary outputs (incl. 2 CO), 10 LEDs Measuring input: 1/5 A, 50/60 Hz, 4 CT configured as 3 PF + 1 SEF/REF (user selec- table setting) for 7XG1114-xF, auxiliary voltage: PSU rated 24-250 V DC/ 100-230 V AC, binary input threshold 19 V DC, Standard Front Cover - no Push buttons, protocols: Modbus RTU, IEC 60870-5-103 and DNP3 (user selectable), Protection function: Standard version
number of LEDs10
switching statisticsVar
circuit breaker monitoringVar
product feature / logic editorVar
controlVar
sequence-of-events recorderVar
Ürün Hakkında
ARGUS Non Directional Overcurrent relay housed in adapter case; Original relay: 7SG1114 - universal wiring; I/O and Fascia: RS485 rear port, USB front port/ 4 CT, 5 binary inputs/ 8 binary outputs (incl. 2 CO), 10 LEDs Measuring input: 1/5 A, 50/60 Hz, 4 CT configured as 3 PF + 1 SEF/REF (user selec- table setting) for 7XG1114-xF, auxiliary voltage: PSU rated 24-250 V DC/ 100-230 V AC, binary input threshold 19 V DC, Standard Front Cover - no Push buttons, protocols: Modbus RTU, IEC 60870-5-103 and DNP3 (user selectable), Protection function: Standard version
Siemens 7SR1194-3MA00-1CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product details
number of LEDs10
Product Functions
type of measured value detection / of operational measured value / standardVar
type of measured value detection / expanded / min./max. values, mean valuesVar
switching statisticsVar
circuit breaker monitoringVar
product feature / logic editorVar
controlVar
fault recording for analog and digital signalsVar
sequence-of-events recorderVar
monitoringVar
number of parameter sets7
parameter set switchoverVar
Protection Functions
three-pole trippingVar
undercurrent protection (ANSI 37)Var
unbalance protection (ANSI 46)Var
overcurrent-time protection negative sequence system (ANSI 46)Var
thermal overload protection (ANSI 49)Var
definite overcurrent-time protection (ANSI 50/50N)Var
Switch On To Fault (ANSI SOTF)Var
arc protection (ANSI AFD)Var
sensitive ground current protection (ANSI 50Ns)Var
circuit breaker failure protection (ANSI 50BF)Var
dependent overcurrent-time protection (ANSI 51/51N)Var
dynamic response value changeover (ANSI 51C)Var
trip-circuit supervision (ANSI 74TC)Var
closing lock-out (ANSI 86)Var
inrush current detectionVar
external trip initiationVar
Besleme gerilimi
supply voltage / at AC100... 230 V
supply voltage / at DC24... 250 V
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of digital inputs / maximum5
number of digital outputs / incl. signaling contact / maximum8
number of current inputs / maximum4
Communication
product component / operating interface (on the front)Var
protocol / is supported / IEC 60870-5-103Var
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / DNP 3, serialVar
protocol / is supported / PRPYok
protocol / is supported / RSTPYok
protocol / is supported / HSRYok
Mechanical Design
width155,5 mm
height177 mm
depth258,5 mm
frame size of enclosureE6
product function / hardware configuration expandableYok
design of the display4
Environmental conditions
ambient temperature / during operation-10... +55 °C
