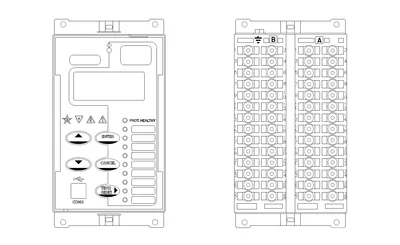

Siemens 7SR1003-2JA20-2CA0
Return only via RMA tool Non-directional, size 4 molded case, 4 CT, 10 LEDs, 6 binary inputs/ 6 binary outp. Measuring input: 1/5 A, 50/60 Hz with SEF input auxiliary voltage: 24 to 60 V DC, binary input threshold 19 V DC Standard version - no cover Communication: Front port: USB and rear: RS485 supporting IEC 60870-5-103 or Modbus RTU or DNP 3.0. . Front fascia: w. breaker control pushbuttons protection function: standard version
product feature / conformal coatingYok
number of function keys7
number of LEDs10
design of the productNon directional Overcurrent relay
switching statisticsVar
circuit breaker monitoringVar
Ürün Hakkında
Return only via RMA tool Non-directional, size 4 molded case, 4 CT, 10 LEDs, 6 binary inputs/ 6 binary outp. Measuring input: 1/5 A, 50/60 Hz with SEF input auxiliary voltage: 24 to 60 V DC, binary input threshold 19 V DC Standard version - no cover Communication: Front port: USB and rear: RS485 supporting IEC 60870-5-103 or Modbus RTU or DNP 3.0. . Front fascia: w. breaker control pushbuttons protection function: standard version
Siemens 7SR1003-2JA20-2CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product details
product feature / conformal coatingYok
number of function keys7
number of LEDs10
Model
design of the productNon directional Overcurrent relay
Product Functions
type of measured value detection / of operational measured value / standardVar
type of measured value detection / expanded / min./max. values, mean valuesYok
switching statisticsVar
circuit breaker monitoringVar
product feature / logic editorVar
controlVar
fault recording for analog and digital signalsVar
sequence-of-events recorderVar
monitoringVar
number of parameter sets2
parameter set switchoverVar
Protection Functions
three-pole trippingVar
undervoltage protection (ANSI 27)Yok
directional power monitoring (ANSI 32)Yok
undercurrent protection (ANSI 37)Yok
unbalance protection (ANSI 46)Var
overcurrent-time protection negative sequence system (ANSI 46)Var
overvoltage protection negative-sequence system (ANSI 47)Yok
thermal overload protection (ANSI 49)Var
definite overcurrent-time protection (ANSI 50/50N)Var
arc protection (ANSI AFD)Var
sensitive ground current protection (ANSI 50Ns)Var
circuit breaker failure protection (ANSI 50BF)Var
dependent overcurrent-time protection (ANSI 51/51N)Var
dynamic response value changeover (ANSI 51C)Var
voltage-dependent overcurrent-time protection (ANSI 51V)Yok
power factor (ANSI 55)Yok
overvoltage protection (ANSI 59)Yok
overvoltage protection zero-sequence system (ANSI 59N)Yok
CT/VT monitoring (ANSI 60CTS / ANSI 60VTS)Var
REF protection (ANSI 64H)Var
directional overcurrent-time protection, phases (ANSI 67)Yok
directional sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 67Ns)Yok
directional sensitive ground fault protection – measured 3U0/I0, φ (ANSI 67SEF according to CEI 0-16)Yok
trip-circuit supervision (ANSI 74TC)Var
automatic reclosing (ANSI 79)Yok
frequency protection (ANSI 81)Yok
monitoring of the total harmonic distortion (ANSI 81I_THD)Var
closing lock-out (ANSI 86)Var
inrush current detectionVar
external trip initiationVar
Besleme gerilimi
supply voltage / at DC24... 60 V
type of voltage / of the supply voltageDC
Inputs / Outputs
number of digital inputs / maximum6
number of voltage inputs0
number of digital outputs / incl. signaling contact / maximum6
number of current inputs / maximum4
Communication
product component / operating interface (on the front)Var
protocol / is supported / IEC 60870-5-103Var
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / DNP 3, serialVar
Time synchronization
type of time synchronizationBI/Communication Channel
Mechanical Design
width105 mm
height185 mm
depth186 mm
frame size of enclosureE4 (4U High )
design of the display20 Character x 4 line Backlit LCD
product component / with protective coverYok
product feature / plug-in terminal blocksVar
Environmental conditions
ambient temperature / during operation-10... +60 °C
Aksesuarlar 8
Siemens 7SR1003-2JA20-2CA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9CA4110-0GE00-0DC1 | Aksesuar | |
| 9CA4110-0ND00-0DH1 | Aksesuar | |
| 9CA4110-0NE00-0DH1 | Aksesuar | |
| 9CA4140-0AD00-0DA8 | Aksesuar | |
| 9CA4140-0AE00-0DA8 | Aksesuar | |
| 9CA4160-0WE00-0DA1 | Aksesuar | |
| 9CA4160-0WE00-0DA2 | Aksesuar | |
| 9CA4160-0WE00-0DA4 | Aksesuar |
