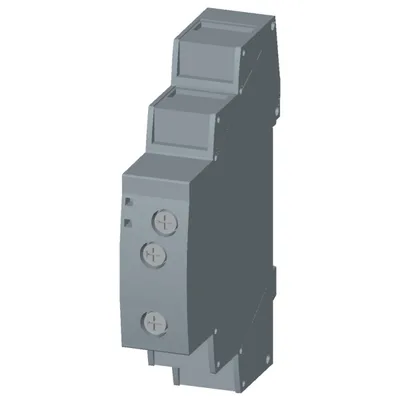

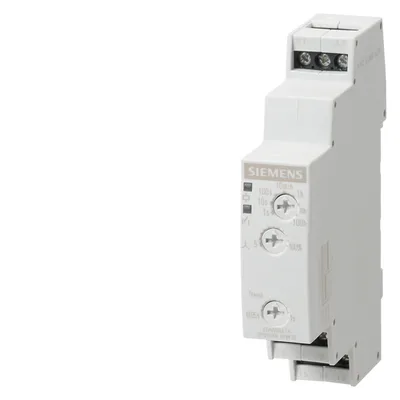

Siemens 7PV1578-1BW30
Timing relay, electronic with star-delta (wye-delta) function 2 NO 7 time ranges 0.05 s...100 h 12-240 V AC/DC Screw terminal
product brand nameSIRIUS
product designationtiming relay
design of the productStar-delta (wye-delta) function
product type designation7PV15
product component semi-conductor outputYok
power loss [W] maximum2 W
Ürün Hakkında
Timing relay, electronic with star-delta (wye-delta) function 2 NO 7 time ranges 0.05 s...100 h 12-240 V AC/DC Screw terminal
Siemens 7PV1578-1BW30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationtiming relay
design of the productStar-delta (wye-delta) function
product type designation7PV15
General technical data
product component semi-conductor outputYok
product extension required remote controlYok
product extension optional remote controlYok
power loss [W] maximum2 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
test voltage for isolation test2,2 kV
degree of pollution2
surge voltage resistance rated value4.000 V
test voltage for surge voltage test4.800 V
shock resistance according to IEC 60068-2-2711 g / 15 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
adjustable time0,05 s... 100 h
relative setting accuracy relating to full-scale value5 %; +/-
ON period/maximum minimum35 ms
recovery time500 ms
reference code according to IEC 81346-2K
relative repeat accuracy2 %; +/-
influence of the surrounding temperature2% in complete temperature range for the set duration
power supply influence2% in complete voltage range for the set duration
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight72,937 g
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value12... 240 V
at 60 Hz rated value12... 240 V
at 50 Hz12... 240 V
at 60 Hz12... 240 V
control supply voltage frequency 150... 60 Hz
control supply voltage at DC rated value12... 240 V
control supply voltage 1 at DC12... 240 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
Switching Function
ON-delayYok
ON-delay/instantaneous contactYok
passing make contactYok
passing make contact/instantaneous contactYok
OFF delayYok
flashing symmetrically with interval start/instantaneousYok
flashing symmetrically with interval startYok
flashing symmetrically with pulse start/instantaneousYok
flashing symmetrically with pulse startYok
flashing asymmetrically with interval startYok
flashing asymmetrically with pulse startYok
star-delta circuit with delay timeYok
star-delta circuitVar
additive ON-delayYok
passing break contactYok
passing break contact/instantaneousYok
OFF delayYok
OFF delay/instantaneousYok
pulse delayedYok
pulse delayed/instantaneousYok
pulse-shapingYok
pulse-shaping/instantaneousYok
additive ON-delay/instantaneousYok
ON-delay/OFF-delayYok
ON-delay/OFF-delay/instantaneousYok
passing make contactYok
passing make contact/instantaneous contactYok
retrotriggerable with deactivated control signal/instantaneous contactYok
retrotriggerable with switched-on control signalYok
retrotriggerable with switched-on control signal/instantaneous contactYok
retriggerable with deactivated control signalYok
design of the control terminal non-floatingYok
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

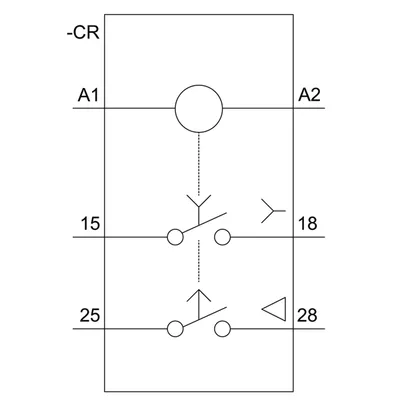

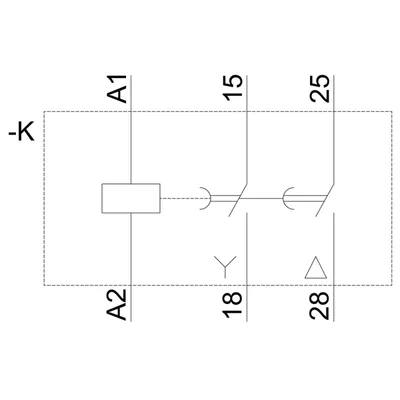

Auxiliary circuit
material of switching contactsAgSnO2
delayed switching0
instantaneous contact0
delayed switching2
instantaneous contact0
delayed switching0
instantaneous contact0
maximum3 A
at 24 V3 A
at 250 V3 A
at 24 V3 A
at 250 V3 A
at 24 V3 A
at 250 V3 A
operational current of auxiliary contacts at DC-131... 0,01
at 24 V1 A
at 125 V0,22 A
at 250 V0,1 A
operating frequency with 3RT2 contactor maximum5.000 1/h
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to ULR150 / B300
switching capacity current with inductive load0,01... 3 A
Inputs/ Outputs
at the relay outputs switchover delayed/without delayYok
non-volatileYok
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,22 A
Electromagnetic compatibility
EMC immunity according to IEC 61812-1EN 61000-6-2
due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-1yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
type of insulationBasic insulation
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
type of electrical connectionscrew terminal
for auxiliary and control circuitscrew-type terminals
solid1x (0,2... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²)
finely stranded without core end processing1x (0,2... 1,5 mm²)
for AWG cables solid1x (24... 14)
for AWG cables stranded1x (24... 14)
solid0,2... 2,5 m²
finely stranded with core end processing0,25... 1,5 m²
finely stranded without core end processing0,2... 1,5 m²
solid24... 14
stranded24... 14
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on fastening on 35 mm DIN rail
height90 mm
width17,5 mm
depth66,7 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
relative humidity during operation15... 85 %
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,34 kg
global warming potential [CO2 eq] / during operation21,2 kg
global warming potential [CO2 eq] / after end of life-0.156 kg
global warming potential [CO2 eq] / total22,4 kg
