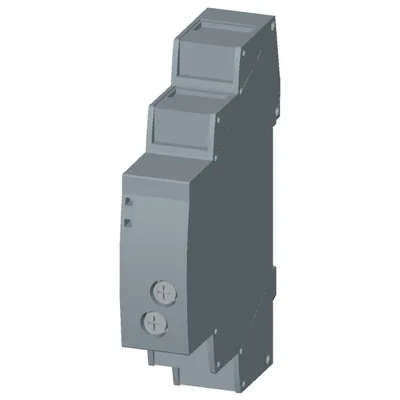

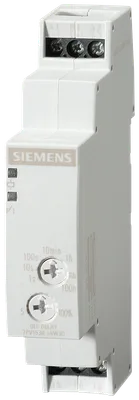

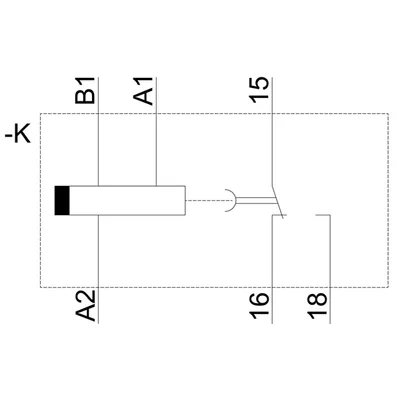

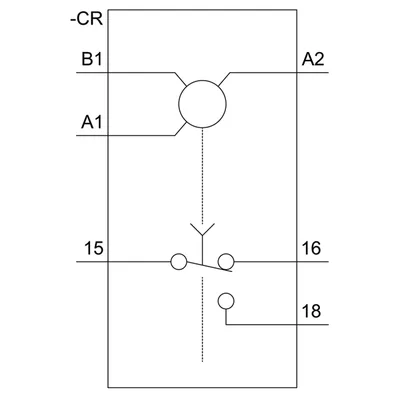

Siemens 7PV1538-1AW30
Timing relay, electronic OFF delay with control signal, 1 change-over contact 7 time ranges, 0.05 s...100 h 12-240 V AC/DC with LED, Screw terminal
product brand nameSIRIUS
product designationtiming relay
design of the productOFF delay with control signal
product type designation7PV15
product component semi-conductor outputYok
power loss [W] maximum2 W
Ürün Hakkında
Timing relay, electronic OFF delay with control signal, 1 change-over contact 7 time ranges, 0.05 s...100 h 12-240 V AC/DC with LED, Screw terminal
Siemens 7PV1538-1AW30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationtiming relay
design of the productOFF delay with control signal
product type designation7PV15
General technical data
product component semi-conductor outputYok
product extension required remote controlYok
product extension optional remote controlYok
power loss [W] maximum2 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
test voltage for isolation test2,2 kV
degree of pollution2
surge voltage resistance rated value4.000 V
test voltage for surge voltage test4.800 V
shock resistance according to IEC 60068-2-2711 g / 15 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 0,35 mm
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
adjustable time0,05 s... 100 h
relative setting accuracy relating to full-scale value5 %; +/-
ON period/maximum minimum35 ms
recovery time500 ms
reference code according to IEC 81346-2K
relative repeat accuracy2 %; +/-
influence of the surrounding temperature2% in complete temperature range for the set duration
power supply influence2% in complete voltage range for the set duration
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,073 kg
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value12... 240 V
at 60 Hz rated value12... 240 V
at 50 Hz12... 240 V
at 60 Hz12... 240 V
control supply voltage frequency 150... 60 Hz
control supply voltage at DC rated value12... 240 V
control supply voltage 1 at DC12... 240 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
Switching Function
ON-delayYok
ON-delay/instantaneous contactYok
passing make contactYok
passing make contact/instantaneous contactYok
OFF delayYok
flashing symmetrically with interval start/instantaneousYok
flashing symmetrically with interval startYok
flashing symmetrically with pulse start/instantaneousYok
flashing symmetrically with pulse startYok
flashing asymmetrically with interval startYok
flashing asymmetrically with pulse startYok
star-delta circuit with delay timeYok
star-delta circuitYok
additive ON-delayYok
passing break contactYok
passing break contact/instantaneousYok
OFF delayVar
OFF delay/instantaneousYok
pulse delayedYok
pulse delayed/instantaneousYok
pulse-shapingYok
pulse-shaping/instantaneousYok
additive ON-delay/instantaneousYok
ON-delay/OFF-delayYok
ON-delay/OFF-delay/instantaneousYok
passing make contactYok
passing make contact/instantaneous contactYok
retrotriggerable with deactivated control signal/instantaneous contactYok
retrotriggerable with switched-on control signalYok
retrotriggerable with switched-on control signal/instantaneous contactYok
retriggerable with deactivated control signalYok
design of the control terminal non-floatingVar
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
Auxiliary circuit
material of switching contactsAgSnO2
delayed switching0
instantaneous contact0
delayed switching0
instantaneous contact0
delayed switching1
instantaneous contact0
maximum3 A
at 24 V3 A
at 250 V3 A
at 24 V3 A
at 250 V3 A
at 24 V3 A
at 250 V3 A
operational current of auxiliary contacts at DC-131... 0,01
at 24 V1 A
at 125 V0,22 A
at 250 V0,1 A
operating frequency with 3RT2 contactor maximum5.000 1/h
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to ULR150 / B300
switching capacity current with inductive load0,01... 3 A
Inputs/ Outputs
at the relay outputs switchover delayed/without delayYok
non-volatileYok
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,22 A
Electromagnetic compatibility
EMC immunity according to IEC 61812-1EN 61000-6-2
due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-1yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
type of insulationBasic insulation
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
type of electrical connectionscrew terminal
for auxiliary and control circuitscrew-type terminals
solid1x (0,2... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²)
finely stranded without core end processing1x (0,2... 1,5 mm²)
for AWG cables solid1x (24... 14)
for AWG cables stranded1x (24... 14)
solid0,2... 2,5 m²
finely stranded with core end processing0,25... 1,5 m²
finely stranded without core end processing0,2... 1,5 m²
solid24... 14
stranded24... 14
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on fastening on 35 mm DIN rail
height90 mm
width17,5 mm
depth66,7 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
relative humidity during operation15... 85 %
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,34 kg
global warming potential [CO2 eq] / during operation21,2 kg
global warming potential [CO2 eq] / after end of life-0.156 kg
global warming potential [CO2 eq] / total22,4 kg
