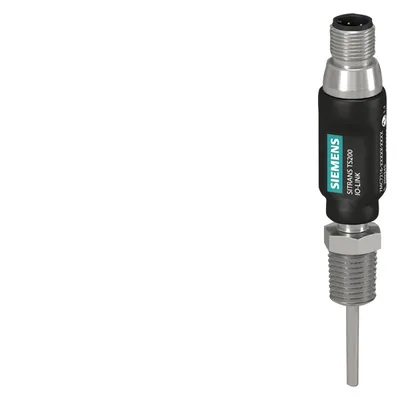

Siemens 7MC7216-5CA14-0AA0
SITRANS TS200 Temperature sensor (Ø 3,5/3mm) Pt100 Cl. A with fast response time, sensor length 24mm and integrated process connection NPT 1/4". Inclusive IO-Link / 4...20mA output, plastic housing PA6
manufacturer's nameSiemens
product brand nameSITRANS TS200
product designationTemperature sensor
supplier nameSiemens
hardware version4
firmware version01.02.01
Ürün Hakkında
SITRANS TS200 Temperature sensor (Ø 3,5/3mm) Pt100 Cl. A with fast response time, sensor length 24mm and integrated process connection NPT 1/4". Inclusive IO-Link / 4...20mA output, plastic housing PA6
Siemens 7MC7216-5CA14-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
manufacturer's nameSiemens
product brand nameSITRANS TS200
product designationTemperature sensor
supplier nameSiemens
marketing text / 1 / as sloganSITRANS TS - Precision in temperature measurement
short text (abstract) / with 80 characters / maximumSITRANS TS200 IO, 3/24mm, Pt100, NP1/4, PA6
hardware version4
firmware version01.02.01
product feature / of the firmware version / can be updatedVar
design, dimensions and weights
length / of the enclosure63 mm
outer diameter / of the enclosure18 mm
weight / without packaging0,038 kg
length / of packaging850 mm
width / of packaging10 mm
height / of packaging30 mm
weight / with packaging0,043 kg
physical measuring principletemperature determination by resistance measurement
electrical data / input
measured variableTemperature
unit / of the measurand°C
temperature measuring range / at input-50... +110
type of connection technology / at input / for resistance thermometer4-wire system
design of the sensor / at input / is supported / according to EN 60751Pt100
number of measuring resistors1
delayed display (T90) / at electronic damping time constant0,1... 3,7 s
sensor current0,0001 A
response time / T633,5 s
electrical data / output
number of analog outputs1
signal range / at analog output4... 20 mA
diagnostics function / at analog output / sensor fault / according to NAMUR NE43Var
design of the digital outputIO-Link, transistor (NPN), transistor (PNP)
number of digital outputs1
connector typeM12 plug, 4-pole, A-coded
product feature / connection plug according to IEC 61076-2-101Var
accuracy class / for resistance thermometers / according to IEC 60751Accuracy class A
type of connection technology2- ve 3-wire technology
type of voltageDC
supply voltage / at DC / 4 mA ... 20 mA8... 32 V
supply voltage / at DC / IO-Link / switching output18... 30 V
maximum0,8 W
IO-Link0,65 W
4 mA ... 20 mA0,55 W
switching output0,8 W
reverse polarity protectionVar
galvanic isolation between in and outputsYok
localization via LEDVar
type of light sourceRGB-LED, multicolor
IO-Link
protocol / between master and IO-Link device / Version 1.1Var
symbol data transfer rate / to COM238,4 kBd
cycle time / minimum8,4 ms
data volume / of process data / per module input4 bayt
type of IO-Link port / AVar
wire length / for IO-Link / unshielded / maximum20 m
switching output
active current / maximum0,15 A
product function / at the digital outputs / parameterizable OFF delayVar
ambient conditions
ambient temperature / during operation-40... +70 °C
relative humidity / during operation0... 100 %
ambient temperature / during storage-40... +70 °C
protection class IP / of the enclosureIP67
standard / for EMCEN 61326-1
mechanical data
design of the housingcompact version, transmitter dahili
design of the process connectionmale thread
nominal size / of the process connection1/4 inch-18 NPT
pressure rating / of the process connectionPN 100
material / of the process connectionstainless steel
according to EN 10027-21,4404
according to AISI316L
material / of the sensor sheathStainless steel
according to EN 10027-21,4404
according to AISI316L
Material / of the connection headPolyamide (PA)
installation length24 mm
outer diameter / of the temperature measurement insert3 mm
vibration resistance / according to IEC 60068-2-610 g
factory setting
design of the sensor / is supported / according to EN 60751Pt100
design of the sensor / in factory setting / according to EN 60751Pt100
type of connection technology / in factory setting / for resistance thermometer4-wire system
temperature measuring range / in factory setting0... 100 °C
environmental footprint
Environmental Product DeclarationVar
global warming potential
total17,4 kg
during manufacturing0,85 kg
during operation16,5 kg
after end of life0,002 kg
