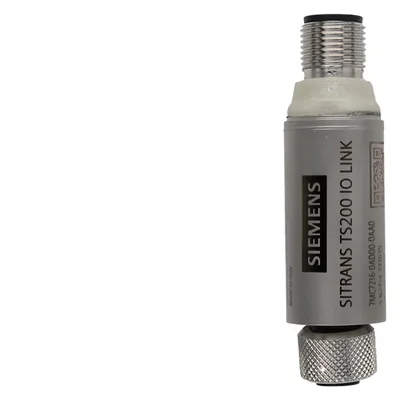

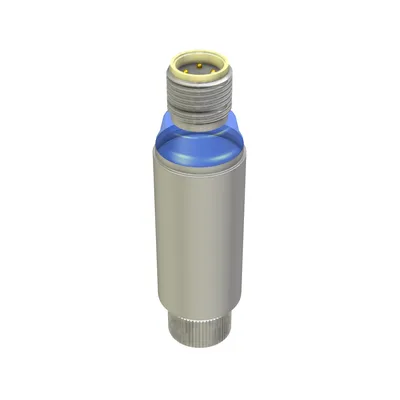

Siemens 7MC7216-0AD00-0AA0
SITRANS TS200 Temperature Transmitter for external Pt100 and Pt1000 temperature sensors with IO-Link / 4…20mA output, stainless steel housing 316L
manufacturer's nameSiemens
product brand nameSITRANS TS200
product designationTemperature sensor
supplier nameSiemens
hardware version4
firmware version01.02.01
Ürün Hakkında
SITRANS TS200 Temperature Transmitter for external Pt100 and Pt1000 temperature sensors with IO-Link / 4…20mA output, stainless steel housing 316L
Siemens 7MC7216-0AD00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
manufacturer's nameSiemens
product brand nameSITRANS TS200
product designationTemperature sensor
supplier nameSiemens
marketing text / 1 / as sloganSITRANS TS - Precision in temperature measurement
short text (abstract) / with 80 characters / maximumSITRANS TS200 IO, transmitter, 316L
hardware version4
firmware version01.02.01
product feature / of the firmware version / can be updatedVar

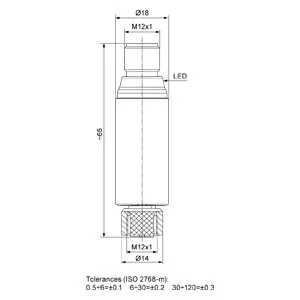

design, dimensions and weights
length / of the enclosure65 mm
outer diameter / of the enclosure18 mm
weight / without packaging0,03 kg
length / of packaging110 mm
width / of packaging30 mm
height / of packaging30 mm
weight / with packaging0,043 kg
physical measuring principletemperature determination by resistance measurement
electrical data / input
measured variableTemperature
unit / of the measurand°C
temperature measuring range / at input-200... +800
type of connection technology / at input / for resistance thermometer2, 3, ve 4-wire technology
design of the sensor / at input / is supported / according to EN 60751Pt100, Pt1000
number of measuring resistors1
delayed display (T90) / at electronic damping time constant0,1... 3,7 s
sensor current0,0001 A
electrical data / output
number of analog outputs1
signal range / at analog output4... 20 mA
diagnostics function / at analog output / sensor fault / according to NAMUR NE43Var
design of the digital outputIO-Link, transistor (NPN), transistor (PNP)
number of digital outputs1
connector typeM12 plug, 4-pole, A-coded
product feature / connection plug according to IEC 61076-2-101Var
type of connection technology2- ve 3-wire technology
type of voltageDC
supply voltage / at DC / 4 mA ... 20 mA8... 32 V
supply voltage / at DC / IO-Link / switching output18... 30 V
maximum0,8 W
IO-Link0,65 W
4 mA ... 20 mA0,55 W
switching output0,8 W
reverse polarity protectionVar
galvanic isolation between in and outputsYok
localization via LEDVar
type of light sourceRGB-LED, multicolor
IO-Link
protocol / between master and IO-Link device / Version 1.1Var
symbol data transfer rate / to COM238,4 kBd
cycle time / minimum8,4 ms
data volume / of process data / per module input4 bayt
type of IO-Link port / AVar
wire length / for IO-Link / unshielded / maximum20 m
switching output
active current / maximum0,15 A
product function / at the digital outputs / parameterizable OFF delayVar
ambient conditions
ambient temperature / during operation-40... +80 °C
relative humidity / during operation0... 100 %
ambient temperature / during storage-40... +80 °C
protection class IP / of the enclosureIP67
standard / for EMCEN 61326-1
mechanical data
design of the housingseparated version, transmitter separated
nominal size / of the process connectionM12 x 1,5
Material / of the connection headStainless steel
vibration resistance / according to IEC 60068-2-610 g
factory setting
design of the sensor / is supported / according to EN 60751Pt100, Pt1000
design of the sensor / in factory setting / according to EN 60751Pt100
type of connection technology / in factory setting / for resistance thermometer4-wire system
temperature measuring range / in factory setting0... 150 °C
environmental footprint
Environmental Product DeclarationVar
global warming potential
total17,4 kg
during manufacturing0,85 kg
during operation16,5 kg
after end of life0,002 kg
Aksesuarlar 1
Siemens 7MC7216-0AD00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 7MC7212-..... | Aksesuar |
