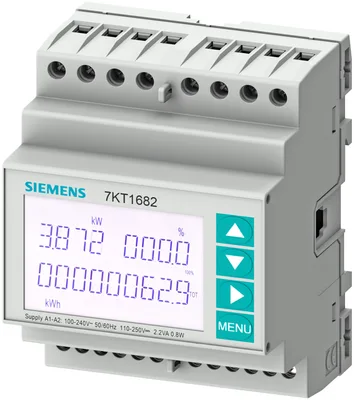

Siemens 7KT1682
SENTRON, ölçüm cihaz, 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 5 A, strd rail instr., 3-phase, Modbus RTU/ASCII, güç monitoring incl. THD, AC/DC, vidalı terminals
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KT PAC1600
for voltage measurementTRMS
for current measurementTRMS
Ürün Hakkında
SENTRON, ölçüm cihaz, 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 5 A, strd rail instr., 3-phase, Modbus RTU/ASCII, güç monitoring incl. THD, AC/DC, vidalı terminals
Siemens 7KT1682
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KT PAC1600
Measurements
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value66 Hz
operating mode for measured value detection automatic line frequency detectionVar
set at 50 HzYok
set to 60 HzYok
Besleme gerilimi
design of the power supplyWide-range power supply
type of voltage of the supply voltageAC/DC
supply voltage at AC100... 240 V
supply voltage at DC110... 250 V
Degree of protection protection class
protection class IP on the frontIP40
Suitability
suitability for operationStandard mounting rail device
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
frequency measurementVar
Display and operation
design of the displayLCD
number of keys4
Communication
transfer rate minimum1.200 kbit/s
transfer rate maximum115.200 kbit/s
Fault limits
reference condition for metering accuracyAcc. to IEC62053-21 ve IEC62053-23
Inputs Outputs
number of digital inputs0
operating conditions for digital inputs external voltage supplyYok
number of digital outputs0
type of switching outputsolid state
type of electrical connection at the digital outputsscrew-type terminals
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value230 V
minimum50 V
maximum415 V
measurable supply voltage between the line conductors at AC maximum rated value400 V
voltage measuring range extension with external voltage transformersyes
measuring category for voltage measurementCAT III
1 at AC rated value5 A
2 at AC rated value5 A
minimum0,5 %
maximum120 %
current measuring range extension with external current transformersVar
zero point suppression for current measurement25 mA
with measuring range 5 A per phase2,2 V·A
measuring category for current measurementCATIII
Connections
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals

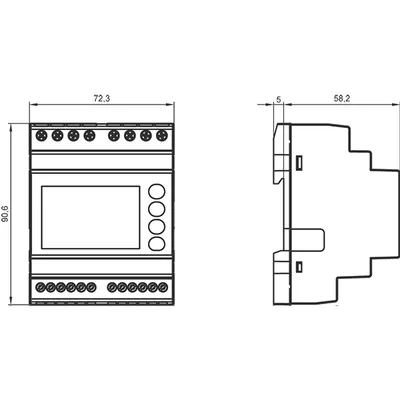

Mechanical Design
fastening method DIN-rail mountingVar
size of Power Monitoring Device4MW
height90 mm
width72 mm
depth63 mm
mounting positionany
Environmental conditions
minimum-20 °C
maximum60 °C
minimum-30 °C
maximum80 °C
relative humidity at 25 °C without condensation during operation maximum80 %
installation altitude at height above sea level maximum2.000 m
degree of pollution2
Certificates
certificate of suitability as EC Declaration of Conformityyes
