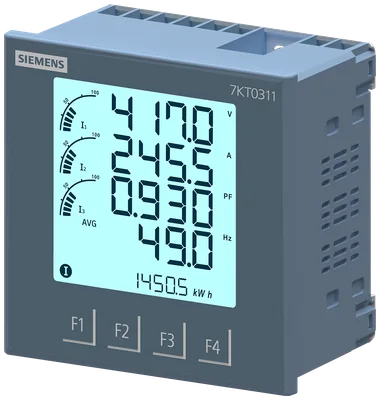

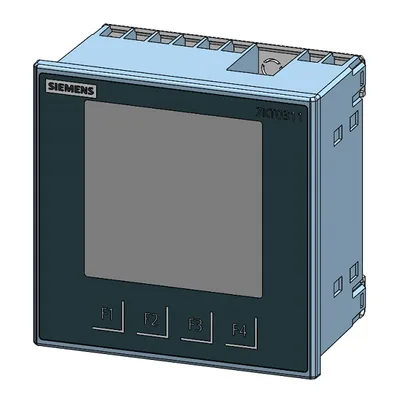

Siemens 7KT0311

Power Monitoring Device Panel instrument for std electrical values Protocol: Modbus RTU LCD display Vaux: 95V to 240V AC x/1 or 5 A, Class 0.5

SiemensMFR # 7KT0311SKU # YLSZ6B35RLZEP

for voltage measurementTrue RMS

for current measurementTrue RMS

type of measured value detectioncomplete

voltage curveSinusoidal veya distorted

initial value45 Hz

full-scale value65 Hz

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Power Monitoring Device Panel instrument for std electrical values Protocol: Modbus RTU LCD display Vaux: 95V to 240V AC x/1 or 5 A, Class 0.5

Siemens 7KT0311

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Measurements

for voltage measurementTrue RMS

for current measurementTrue RMS

type of measured value detectioncomplete

voltage curveSinusoidal veya distorted

initial value45 Hz

full-scale value65 Hz

operating mode for measured value detection automatic line frequency detectionVar

Besleme gerilimi

design of the power supplySMPS power supply

type of voltage of the supply voltageAC

Degree of protection protection class

protection class IP on the frontIP65

protection class IP of the terminalIP20

Suitability

suitability for operationInstallation in stationary panels in closed rooms

Product Functions

voltage measurementVar

current measurementVar

active power measurementVar

reactive power measurementVar

power factor measurementVar

frequency measurementVar

apparent energy/active energy/reactive energyVar

Display and operation

design of the displayLCD

height of the display60 mm

width of the display60 mm

color of the background of the displayWhite

illuminance of display backlight adjustableYok

time-controlled reduction of the illuminance of display backlight possibleVar

display contrast adjustableYok

national language on the display screen is supportedEN

number of keys4

Communication

transfer rate minimum0,3 kbit/s

transfer rate maximum19,2 kbit/s

Fault limits

reference condition for metering accuracyaccording to IEC61557-12, IEC62053-21, IEC62053-23

for measured variable voltageClass 0,5 acc. to IEC 61557-12

for measured variable currentClass 0,5 acc. to IEC 61557-12

for measured variable apparent powerClass 1 as per IEC 61557-12

for measured variable active powerClass 1 acc. to IEC 61557-12

for measured variable reactive powerClass 2 as per IEC 61557-12

for measured variable output factorClass 1 as per IEC 61557-12

for measured variable active energyClass 0,5 acc. to IEC 61557-12 ve IEC 62053-21

for measured variable reactive energyClass 2 as per IEC 61557-12 ve IEC 62053-23

for measured variable THDClass 3 as per IEC 61557-12

Inputs Outputs

number of digital inputs1

type of electrical connection at the digital inputsscrew-type terminals

operating conditions for digital inputs external voltage supplyVar

input voltage at digital input at DC maximum30 V

input current at digital input initial value for signal<1>-recognition10 mA

number of digital outputs1

type of switching outputUnidirectional

digital output versionSwitching veya pulse output function

operating voltage as output voltage at DC maximum permissible30 V

type of electrical connection at the digital outputsscrew-type terminals

output current at the digital outputs at DC limited to 100 ms maximum130 mA

internal resistance at the digital outputs55 Ω

standard for pulse emitteraccording to IEC62053-31

initial value100 ms

full-scale value2.000 ms

adjustable time period minimum100 ms

switching frequency at digital output maximum17 Hz

Measuring inputs

measurable supply voltage between (PE)N and L at AC maximum rated value240 V

minimum11 V

maximum300 V

measurable supply voltage between the line conductors at AC maximum rated value415 V

minimum19 V

maximum519 V

voltage measuring range extension with external voltage transformersVar

line conductors and neutral conductors internal resistance for voltage measurement1,12 MΩ

measuring category for voltage measurementCAT III

1 at AC rated value1 A

2 at AC rated value5 A

minimum1 %

maximum120 %

current measuring range extension with external current transformersVar

apparent power consumption for current measurement with measuring range 5 A per phase3 V·A

measuring category for current measurementCAT III

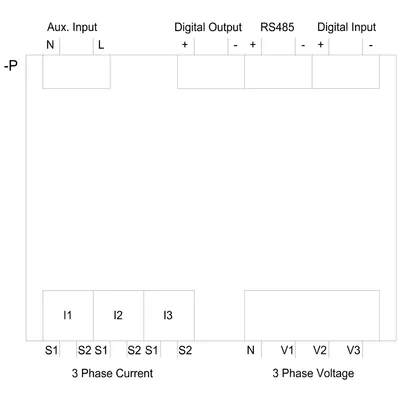

Connections

at the measurement inputs for voltagescrew-type terminals

at the measurement inputs for currentscrew-type terminals

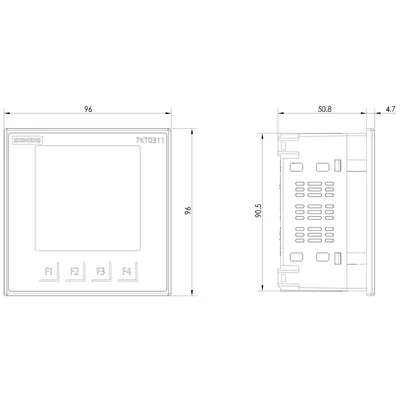

Mechanical Design

fastening method DIN-rail mountingYok

size of Power Monitoring Devicesize 96

height96 mm

width96 mm

depth57 mm

installation depth52,3 mm

cutout height92 mm

cutout width92 mm

mounting positionVertical

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-20 °C

maximum75 °C

relative humidity at 25 °C without condensation during operation maximum85 %

installation altitude at height above sea level maximum2.000 m
