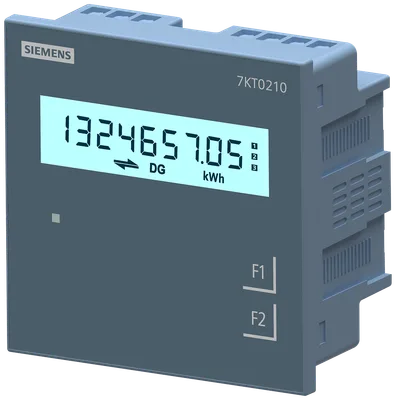

Siemens 7KT0210
güç Monitoring cihaz panel instrument için energy (dual source), güç ve güç factor Protocol: Modbus RTU Single hat LCD gösterge Vaux: 95V to 240V AC x/1 veya 5 A, sınıf 1
for voltage measurementTrue RMS
for current measurementTrue RMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
Ürün Hakkında
güç Monitoring cihaz panel instrument için energy (dual source), güç ve güç factor Protocol: Modbus RTU Single hat LCD gösterge Vaux: 95V to 240V AC x/1 veya 5 A, sınıf 1
Siemens 7KT0210
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measurements
for voltage measurementTrue RMS
for current measurementTrue RMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
operating mode for measured value detection automatic line frequency detectionVar
Besleme gerilimi
design of the power supplySMPS power supply
type of voltage of the supply voltageAC
Degree of protection protection class
protection class IP on the frontIP54
protection class IP of the terminalIP20
Suitability
suitability for operationInstallation in stationary panels in closed rooms
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
power factor measurementVar
frequency measurementVar
apparent energy/active energy/reactive energyVar
Display and operation
design of the displayLCD
height of the display34,5 mm
width of the display78 mm
color of the background of the displayWhite
illuminance of display backlight adjustableYok
display contrast adjustableYok
national language on the display screen is supportedEN
number of keys2
Communication
transfer rate minimum0,3 kbit/s
transfer rate maximum19,2 kbit/s
Fault limits
reference condition for metering accuracyaccording to IEC61557-12, IEC62053-21, IEC62053-23
for measured variable voltageClass 0,5 acc. to IEC 61557-12
for measured variable currentClass 0,5 acc. to IEC 61557-12
for measured variable apparent powerClass 1 as per IEC 61557-12
for measured variable active powerClass 1 acc. to IEC 61557-12
for measured variable reactive powerClass 2 as per IEC 61557-12
for measured variable output factorClass 1 as per IEC 61557-12
for measured variable active energyClass 1 according to IEC 61557-12 ve IEC62053-21
for measured variable reactive energyClass 2 as per IEC 62053-23 ve IEC 61557-12

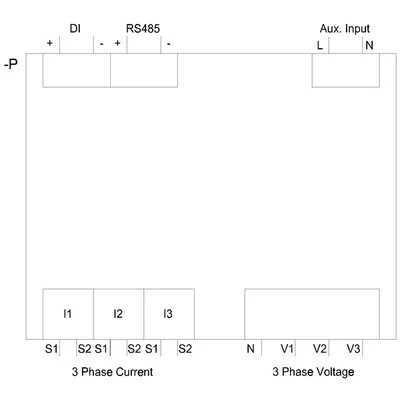

Inputs Outputs
number of digital inputs1
type of electrical connection at the digital inputsscrew-type terminals
operating conditions for digital inputs external voltage supplyVar
input voltage at digital input at DC maximum30 V
input current at digital input initial value for signal<1>-recognition7 mA
type of electrical connection at the digital outputsscrew-type terminals
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value240 V
minimum11 V
maximum300 V
measurable supply voltage between the line conductors at AC maximum rated value415 V
minimum19 V
maximum519 V
voltage measuring range extension with external voltage transformersVar
line conductors and neutral conductors internal resistance for voltage measurement1,12 MΩ
measuring category for voltage measurementCAT III
1 at AC rated value1 A
2 at AC rated value5 A
minimum1 %
maximum120 %
current measuring range extension with external current transformersVar
apparent power consumption for current measurement with measuring range 5 A per phase3 V·A
measuring category for current measurementCAT III
Connections
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals

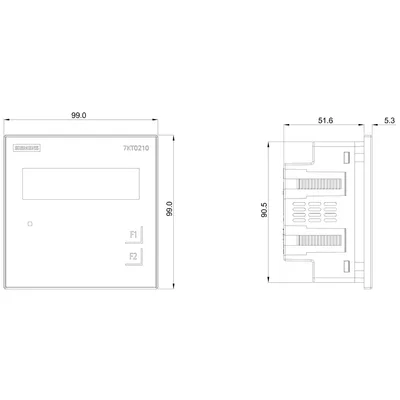

Mechanical Design
fastening method DIN-rail mountingYok
size of Power Monitoring Devicesize 96
height96 mm
width96 mm
depth51,6 mm
installation depth51,6 mm
cutout height92 mm
cutout width92 mm
mounting positionVertical
Environmental conditions
minimum-10 °C
maximum55 °C
minimum-20 °C
maximum75 °C
relative humidity at 25 °C without condensation during operation maximum85 %
installation altitude at height above sea level maximum2.000 m
degree of pollution2
