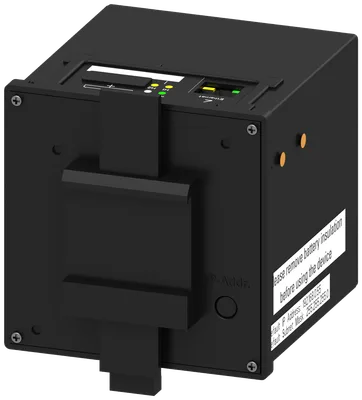

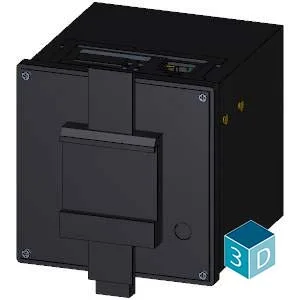

Siemens 7KM5412-6CA00-1EA8
SENTRON, ölçüm instrument ve güç quality recorder, 7KM PAC5200, DIN-rail muhafaza olmadan gösterge, L-L: 690 V, L-N: 400 V, 10 A, DIN rail instrument, 3- faz, Modbus TCP, apparent / active / reactive energy / cos phi, harmonics: 2nd - 40th, THD, sınıf 0,5 acc. to IEC 61557-12 veya sınıf 0,5 s acc. to IEC 62053-22, wide-range güç kaynağı, AC/DC, vidalı terminals
product brand nameSENTRON
design of the productAdvanced
product type designation7KM PAC5200
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
Ürün Hakkında
SENTRON, ölçüm instrument ve güç quality recorder, 7KM PAC5200, DIN-rail muhafaza olmadan gösterge, L-L: 690 V, L-N: 400 V, 10 A, DIN rail instrument, 3- faz, Modbus TCP, apparent / active / reactive energy / cos phi, harmonics: 2nd - 40th, THD, sınıf 0,5 acc. to IEC 61557-12 veya sınıf 0,5 s acc. to IEC 62053-22, wide-range güç kaynağı, AC/DC, vidalı terminals
Siemens 7KM5412-6CA00-1EA8
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMeasuring device for power system quality measurement
design of the productAdvanced
product type designation7KM PAC5200
Measurements
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
operating mode for measured value detection automatic line frequency detectionVar
set at 50 HzYok
set to 60 HzYok
Besleme gerilimi
design of the power supplyWide-range power supply
type of voltage of the supply voltageAC/DC
supply voltage at AC90... 270 V
supply voltage at DC20... 300 V
Degree of protection protection class
protection class IP on the frontIP20
operating resource protection class when installedII
Suitability
suitability for operationStandard mounting rail device
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
frequency measurementVar
Display and operation
design of the displayStandard mounting rail enclosure without display
color of the background of the displaywhite
illuminance of display backlight adjustableYok
time-controlled reduction of the illuminance of display backlight possibleYok
display contrast adjustableYok
national language on the display screen is supportedde, en
number of keys4
Communication
number of interfaces according to Fast Ethernet1
type of electrical connection of the fast Ethernet interfaceRJ45 (8P8C)
Fault limits
reference condition for metering accuracyaccording to IEC 62053-22, IEC 62053-23, IEC 62586-1, Class S, IEC 61000-4-30, IEC 61000-4-7, IEC 61000-4-15
for measured variable voltage+/- 0,2 %
for measured variable current+/- 0,2 %
for measured variable output factor+/- 0,5 %
for measured variable active energyCl. 0,5 acc. to... IEC62053-22
for measured variable reactive energyClass 2 according to IEC61557-12 ve/veya IEC62053-23
for measured variable THD+/- 0,5 %
Inputs Outputs
number of digital inputs0
number of digital outputs2
type of switching outputsolid state
digital output versionContinuous output, pulse output
operating voltage as output voltage at DC maximum permissible250 V
type of electrical connection at the digital outputsscrew-type terminals
at digital output for signal <1> maximum300 mA
internal resistance at the digital outputs35 Ω
initial value50 ms
full-scale value3.600.000 ms
adjustable time period minimum50 ms
switching frequency at digital output maximum10 Hz
property of the output short-circuit proofVar
measuring category for digital signalsCat. III
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value400 V
measurable supply voltage between the line conductors at AC maximum rated value690 V
maximum831 V
voltage measuring range extension with external voltage transformersyes
line conductors and neutral conductors internal resistance for voltage measurement6 MΩ
measuring category for voltage measurementCAT III
1 at AC rated value5 A
2 at AC rated value5 A
minimum1 %
maximum200 %
current measuring range extension with external current transformersVar
zero point suppression for current measurement0... 10 %
for neutral conductor current0,0 % to 10,0 % (from Vrated, Irated)
with measuring range 5 A per phase2 V·A
measuring category for current measurementCATIII
Connections
at the measurement inputs for voltage solid2,5 mm²
at the measurement inputs for voltage finely stranded with core end processing2,5 mm²
at the measurement inputs for voltage for AWG cables solidScrew connection
at the measurement inputs for current solid2,5 mm²
at the measurement inputs for current finely stranded with core end processing2,5 mm²
at the measurement inputs for current for AWG cables solidScrew connection
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals
Mechanical Design
fastening method DIN-rail mountingVar
size of Power Monitoring DeviceDIN rail
mounting positiondikey
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-40 °C
maximum70 °C
relative humidity at 25 °C without condensation during operation maximum95 %
installation altitude at height above sea level maximum2.000 m
degree of pollution2
Certificates
certificate of suitability as EC Declaration of ConformityEN 61000-6-2 ve EN 61000-6-4 for EMC guideline
