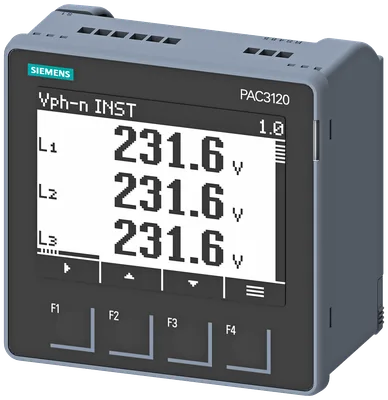

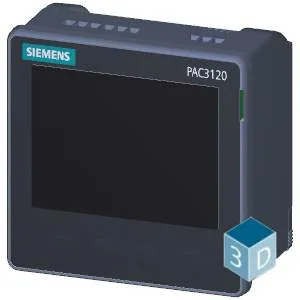

Siemens 7KM3120-1BA01-1EA0
SENTRON PAC3120, LCD 96 x 96 mm güç Monitoring cihaz, kontrol panel instrument ile measurement of electrical variables, protocol: Modbus RTU, ile graphical gösterge, Ue anma: 690/400 V, 45-65 Hz, Ie anma: X/1 A veya X/5 A AC, yardımcı güç: 24... 60 V -20/+10% DC, vidalı klemens bağlantı
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC3120
for voltage measurementTRMS
for current measurementTRMS
Ürün Hakkında
SENTRON PAC3120, LCD 96 x 96 mm güç Monitoring cihaz, kontrol panel instrument ile measurement of electrical variables, protocol: Modbus RTU, ile graphical gösterge, Ue anma: 690/400 V, 45-65 Hz, Ie anma: X/1 A veya X/5 A AC, yardımcı güç: 24... 60 V -20/+10% DC, vidalı klemens bağlantı
Siemens 7KM3120-1BA01-1EA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC3120
Measurements
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
operating mode for measured value detection automatic line frequency detectionVar
set at 50 HzYok
set to 60 HzYok
Besleme gerilimi
design of the power supplyExtra-low voltage power supply unit
type of voltage of the supply voltageDC
supply voltage at DC24... 60 V
Degree of protection protection class
protection class IP on the frontIP65
Suitability
suitability for operationInstallation in stationary panels in closed rooms
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
frequency measurementVar
Display and operation
design of the displayLCD
height of the display54 mm
width of the display72 mm
color of the background of the displaywhite
illuminance of display backlight adjustableYok
time-controlled reduction of the illuminance of display backlight possibleVar
display contrast adjustableVar
national language on the display screen is supportedde, en, fr, spa, ita, por, tur, chi, pol
number of keys4
Communication
transfer rate minimum4,8 kbit/s
transfer rate maximum115,2 kbit/s
Fault limits
reference condition for metering accuracyIn accordance with IEC61557-12, IEC62053-22 ve IEC62053-23
for measured variable voltage+/- 0,2 %
for measured variable current+/- 0,2 %
for measured variable active power+/- 0,5 %
for measured variable reactive power+/- 1 %
for measured variable output factor+/- 0,5 %
for measured variable active energyCl. 0,5 acc. to... IEC62053-22
for measured variable reactive energyClass 2 according to IEC61557-12 ve/veya IEC62053-23
Inputs Outputs
number of digital inputs2
type of electrical connection at the digital inputsscrew-type terminals
operating conditions for digital inputs external voltage supplyVar
input voltage at digital input at DC maximum30 V
initial value for signal<1>-recognition7 mA
number of digital outputs2
type of switching outputbidirectional
digital output versionswitching veya pulse output function
operating voltage as output voltage at DC maximum permissible30 V
type of electrical connection at the digital outputsscrew-type terminals
at the digital outputs at DC limited to 100 ms maximum130 mA
internal resistance at the digital outputs55 Ω
standard for pulse emitteraccording to IEC62053-31
initial value30 ms
full-scale value500 ms
adjustable time period minimum10 ms
switching frequency at digital output maximum17 Hz
property of the output short-circuit proofVar
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value400 V
minimum11,5 V
maximum480 V
measurable supply voltage between the line conductors at AC maximum rated value690 V
voltage measuring range extension with external voltage transformersyes
line conductors and neutral conductors internal resistance for voltage measurement1,5 MΩ
measuring category for voltage measurementCAT III
1 at AC rated value1 A
2 at AC rated value5 A
minimum1 %
maximum120 %
minimum10 %
maximum100 %
current measuring range extension with external current transformersVar
zero point suppression for current measurement0... 10 %
with measuring range 5 A per phase0,3 V·A
measuring category for current measurementCATIII
Connections
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals

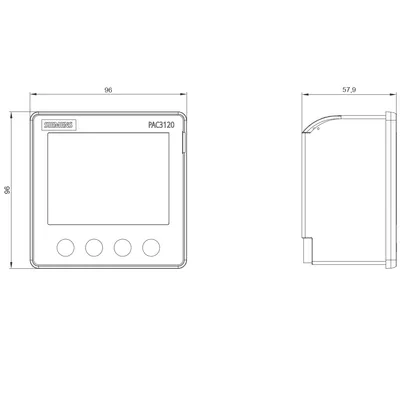

Mechanical Design
fastening method DIN-rail mountingYok
size of Power Monitoring Devicesize 96
height96 mm
width96 mm
depth56 mm
installation depth51 mm
mounting positiondikey
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-25 °C
maximum70 °C
relative humidity at 25 °C without condensation during operation maximum75 %
installation altitude at height above sea level maximum2.000 m
degree of pollution2
Certificates
certificate of suitability as EC Declaration of Conformityyes
Aksesuarlar 3
Siemens 7KM3120-1BA01-1EA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 7KM9900-0GA00-0AA0 | Aksesuar | |
| 7KM9900-0XA00-0AA0 | Aksesuar | |
| 7KM9900-0YA00-0AA0 | Aksesuar |
