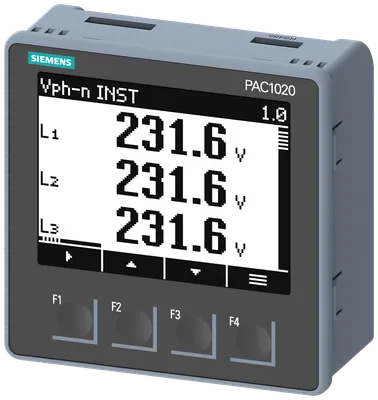

Siemens 7KM1020-0BA01-1DA0
SENTRON PAC1020, 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus RTU, with graphical display, Ue rated max: 400/230 V, 45-65 Hz, Ie rated: X/5A AC, auxiliary power: 85 V – 276 V AC screw terminal connection
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC1020
for voltage measurementTRMS
for current measurementTRMS
Ürün Hakkında
SENTRON PAC1020, 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus RTU, with graphical display, Ue rated max: 400/230 V, 45-65 Hz, Ie rated: X/5A AC, auxiliary power: 85 V – 276 V AC screw terminal connection
Siemens 7KM1020-0BA01-1DA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC1020
Measurements
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
operating mode for measured value detection automatic line frequency detectionVar
set at 50 HzYok
set to 60 HzYok
Besleme gerilimi
design of the power supplyWide-range power supply
type of voltage of the supply voltageAC/DC
supply voltage at AC100... 250 V
supply voltage at DC100... 250 V
Degree of protection protection class
protection class IP on the frontIP40
operating resource protection class when installedII
Suitability
suitability for operationInstallation in stationary panels in closed rooms
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
frequency measurementVar
Display and operation
design of the displayLCD
height of the display56 mm
width of the display74 mm
color of the background of the displaywhite
illuminance of display backlight adjustableVar
display contrast adjustableVar
national language on the display screen is supportedsp, en, cn, pt
number of keys4
Communication
transfer rate minimum4.800 kbit/s
transfer rate maximum115.200 kbit/s
number of interfaces according to Fast Ethernet1
Fault limits
reference condition for metering accuracyaccording to IEC62053-21
for measured variable voltage0,50%
for measured variable current+/- 0,5 %
for measured variable active power1%
for measured variable reactive power2%
for measured variable output factor0,50%
for measured variable active energyclass 1 according to IEC62053-21
for measured variable reactive energy2%
Inputs Outputs
number of digital inputs1
design of the switching inputelectronic, passive
type of electrical connection at the digital inputsscrew-type terminals
operating conditions for digital inputs external voltage supplyVar
input voltage at digital input at DC maximum30 V
number of digital outputs1
type of switching outputelectronic, passive
digital output versionswitching veya pulse output function
operating voltage as output voltage at DC maximum permissible30 V
type of electrical connection at the digital outputsscrew-type terminals
at the digital outputs at DC limited to 100 ms maximum130 mA
internal resistance at the digital outputs55 Ω
standard for pulse emitteraccording to IEC62053-31
initial value500 ms
full-scale value30 ms
adjustable time period minimum10 ms
switching frequency at digital output maximum17 Hz
property of the output short-circuit proofVar
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value230 V
minimum11,5 V
maximum280 V
measurable supply voltage between the line conductors at AC maximum rated value400 V
voltage measuring range extension with external voltage transformersyes
line conductors and neutral conductors internal resistance for voltage measurement1,5 MΩ
measuring category for voltage measurementCAT III
1 at AC rated value1 A
2 at AC rated value5 A
minimum10 %
maximum120 %
current measuring range extension with external current transformersVar
zero point suppression for current measurement0... 10 %
measuring category for current measurementCATIII

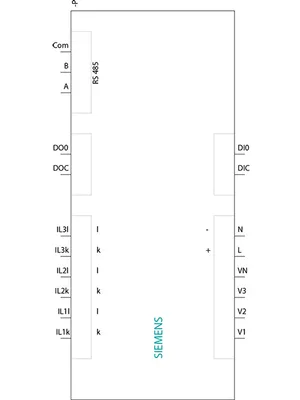

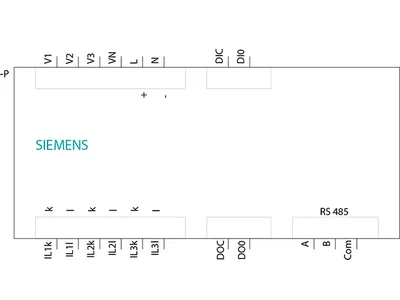

Connections
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals

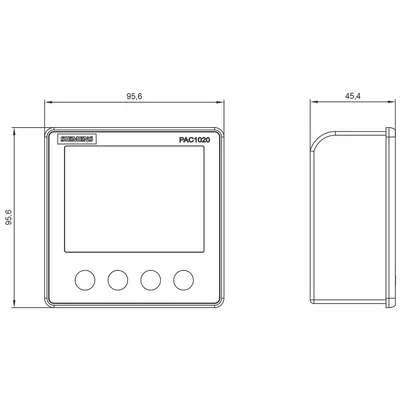

Mechanical Design
fastening method DIN-rail mountingYok
size of Power Monitoring Devicesize 96
height96 mm
width96 mm
depth42 mm
installation depth42 mm
mounting positiondikey
Environmental conditions
minimum-10 °C
maximum55 °C
minimum-25 °C
maximum70 °C
relative humidity at 25 °C without condensation during operation maximum75 %
installation altitude at height above sea level maximum2.000 m
degree of pollution2
Certificates
certificate of suitability as EC Declaration of Conformityyes
Aksesuarlar 3
Siemens 7KM1020-0BA01-1DA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 7KM9900-0GA00-0AA0 | Aksesuar | |
| 7KM9900-0XA00-0AA0 | Aksesuar | |
| 7KM9900-0YA00-0AA0 | Aksesuar |
