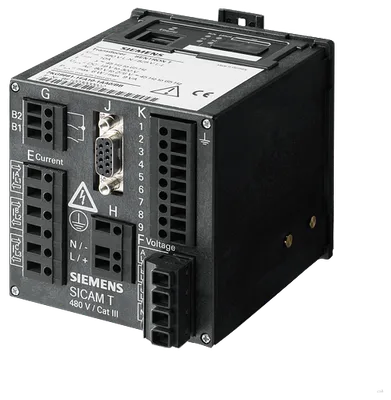

Siemens 7KG9662-2FA00-2AA0
Return only via RMA tool Transmitter SICAM T, Standard mounting rail device without display, Enclosure 96 mm x 96 mm x 100 mm, IP20, 2 binary outputs, Ethernet interface with IEC 61850, galvanized separated current transformer, 4 analog outputs, without serial interface and communication protocol
sampling frequency / per sampling cycle3.200 Hz
number of harmonics0
product function / logic functionYok
type of data transmission / via CSVYok
input current / maximum10 A
supply voltage / at AC110... 230 V
Ürün Hakkında
Return only via RMA tool Transmitter SICAM T, Standard mounting rail device without display, Enclosure 96 mm x 96 mm x 100 mm, IP20, 2 binary outputs, Ethernet interface with IEC 61850, galvanized separated current transformer, 4 analog outputs, without serial interface and communication protocol
Siemens 7KG9662-2FA00-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
measuring procedure / for voltage measurementgalvanically separated voltage transformer
sampling frequency / per sampling cycle3.200 Hz
number of harmonics0
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / querying of limit violationsVar
product function / logic functionYok
type of measured value detection / min./max. valuesYok
type of measured value detection / mean valuesVar
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-220,2S
accuracy class / of the measuring instrument / for measured variable reactive power0,5
File formats
type of data transmission / via CSVYok
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
Measuring inputs
number of inputs / for voltage measurement4
number of inputs / for current measurement3
input voltage / between L and L / maximum690 V
input voltage / between L and N / maximum400 V
input current / maximum10 A
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
measuring range frequency / at the measurement inputs45... 65 Hz
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of analog inputs0
number of digital inputs0
number of analog outputs4
number of digital outputs2
Communication
protocol / is supported / IEC 61850Var
protocol / is supported / Modbus TCPVar
protocol / is supported / Modbus RTUYok
protocol / is supported / SNMPYok
protocol / is supported / OPC UA with PubSubYok
protocol / is supported / IEC 60870-5-103Yok
protocol / is supported / IEC 60870-5-104Yok
communication function / Modbus RTU as masterYok
number of ports / of the Ethernet interface1
product function / gateway function for Modbus RTUYok
Cybersecurity
type of access control / role-based access control (RBAC)Yok
product function / logging via Audit logYok
product function / logging via Security EventlogYok
service / as web server / HTTPSVar
product function / firmware identifierYok
Time synchronization
type of time synchronizationNTP
Mechanical Design
width96 mm
height96 mm
depth100 mm
weight500 g
fastening method / DIN-rail mountingVar
fastening method / wall mountingVar
fastening method / rack mountingVar
type of electrical connectionscrew terminal
connectable conductor cross-section0,2... 2,5 mm²
Degree of protection / protection class
protection class IP / on the frontIP20
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-25... +55 °C
ambient temperature / during storage-25... +70 °C
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
