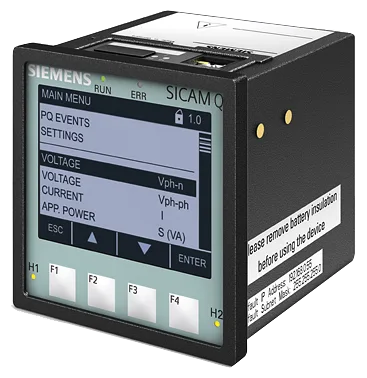

Siemens 7KG9501-0AA01-2AA1
Multifunctional güç Quality Instrument SICAM Q100, PQI-A, Dimensions 96mm x 96mm x 100mm, panel flush-mounting cihaz ile LCD, güç besleme gerilimi: DC 24 – 230 V / AC 110 – 230 V, 4 giriş AC gerilim measurement 4 giriş AC akım measurement 2 binary in-, 2 binary çıkış, Web server için parameterization ve visualization,. NTP time synchronization,. CE ve UL certification,. 2 GB memory, Ethernet anahtar, Ethernet arayüz, RJ45, ve communication protocols SNMPv3, Modbus TCP ve IEC 61850 server olmadan serial communication arayüz
sampling frequency / per sampling cycle10.240 Hz
number of harmonics63
product function / logic functionVar
storage capacity2 Gbyte
product function / overvoltage detectionVar
Type of data format / for record / PQDifVar
Ürün Hakkında
Multifunctional güç Quality Instrument SICAM Q100, PQI-A, Dimensions 96mm x 96mm x 100mm, panel flush-mounting cihaz ile LCD, güç besleme gerilimi: DC 24 – 230 V / AC 110 – 230 V, 4 giriş AC gerilim measurement 4 giriş AC akım measurement 2 binary in-, 2 binary çıkış, Web server için parameterization ve visualization,. NTP time synchronization,. CE ve UL certification,. 2 GB memory, Ethernet anahtar, Ethernet arayüz, RJ45, ve communication protocols SNMPv3, Modbus TCP ve IEC 61850 server olmadan serial communication arayüz
Siemens 7KG9501-0AA01-2AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
sampling frequency / per sampling cycle10.240 Hz
number of harmonics63
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / querying of limit violationsVar
product function / logic functionVar
product function / measurement of the harmonic active powerVar
type of measured value detection / min./max. valuesVar
type of measured value detection / mean valuesVar
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-220,2S
accuracy class / of the measuring instrument / for measured variable reactive power0,5
storage capacity2 Gbyte
Power Quality functions
power quality assessment function / transient detection/loggingVar
power quality assessment function / measurement of the voltage of harmonic components in the range 2 kHz ... 9 kHzYok
power quality assessment function / measurement of the voltage of harmonic components in the range 9 kHz ... 150 kHzYok
power quality assessment function / Total Harmonic Distortion (THD)Var
power quality assessment function / voltage dipVar
power quality assessment function / detection of asymmetryVar
power quality assessment function / detecting and visualization of voltage fluctuationsVar
power quality assessment function / measurement of the harmonic phase angleVar
product feature / data evaluation according to EN 50160Var
product function / overvoltage detectionVar
product function / for voltage variations and flicker / integrated / according to IEC 61000-4-15Var
accuracy class / of the measuring instrument / according to IEC 61000-4-30Class A
number of sampling values / per 10 sampling cycles2.048
File formats
Type of data format / for record / COMTRADEVar
Type of data format / for record / PQDifVar
type of data transmission / via CSVVar
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
energy management function / calculation of load profilesVar
energy management function / tariffsVar
energy management function / load factor (TOU)Var
number of tariffs8
Measuring inputs
number of inputs / for voltage measurement4
number of inputs / for current measurement4
input voltage / between L and L / maximum690 V
input voltage / between L and N / maximum400 V
input current / maximum10 A
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
measuring range frequency / at the measurement inputs42,5... 69 Hz
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of analog inputs0
number of digital inputs2
number of analog outputs0
number of digital outputs2
Communication
protocol / is supported / IEC 61850Var
protocol / is supported / Modbus TCPVar
protocol / is supported / Modbus RTUYok
protocol / is supported / SNMPVar
communication function / Modbus RTU as masterYok
number of ports / of the Ethernet interface1
product function / gateway function for Modbus RTUYok
Cybersecurity
type of access control / role-based access control (RBAC)Var
product function / logging via Audit logVar
product function / logging via Security EventlogVar
service / as web server / HTTPSVar
product function / firmware identifierVar
Time synchronization
type of time synchronizationNTP
Mechanical Design
width96 mm
height96 mm
depth100 mm
weight550 g
product feature / with displayVar
fastening method / DIN-rail mountingYok
fastening method / wall mountingYok
fastening method / rack mountingVar
type of electrical connectionScrew terminals
connectable conductor cross-section0,2... 2,5 mm²
Degree of protection / protection class
protection class IP / on the frontIP40
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-25... +55 °C
ambient temperature / during storage-40... +70 °C
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
