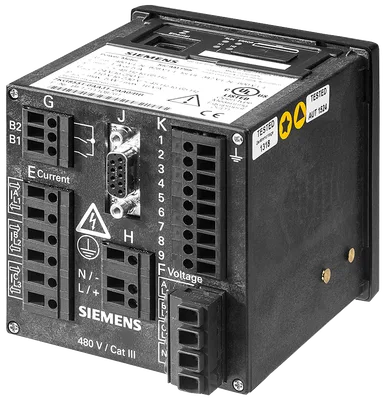

Siemens 7KG8550-0AA00-0AA0
Return only via RMA tool ölçüm cihaz ve güç quality recorder, monitoring, Recording ve güç Quality(PQ) Functions, temel measurements ve extended measurements, standart montaj rail muhafaza, olmadan gösterge, olmadan serial arayüz ve communication protocol, ön koruma sınıf: IP20, Modbus TCP
sampling frequency / per sampling cycle10.240 Hz
number of harmonics40
product function / logic functionVar
storage capacity2 Gbyte
product function / overvoltage detectionVar
Type of data format / for record / PQDifVar
Ürün Hakkında
Return only via RMA tool ölçüm cihaz ve güç quality recorder, monitoring, Recording ve güç Quality(PQ) Functions, temel measurements ve extended measurements, standart montaj rail muhafaza, olmadan gösterge, olmadan serial arayüz ve communication protocol, ön koruma sınıf: IP20, Modbus TCP
Siemens 7KG8550-0AA00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
sampling frequency / per sampling cycle10.240 Hz
number of harmonics40
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / querying of limit violationsVar
product function / logic functionVar
product function / measurement of the harmonic active powerYok
type of measured value detection / min./max. valuesVar
type of measured value detection / mean valuesVar
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-220,5S
accuracy class / of the measuring instrument / for measured variable reactive power1
storage capacity2 Gbyte
Power Quality functions
power quality assessment function / transient detection/loggingYok
power quality assessment function / measurement of the voltage of harmonic components in the range 2 kHz ... 9 kHzYok
power quality assessment function / measurement of the voltage of harmonic components in the range 9 kHz ... 150 kHzYok
power quality assessment function / Total Harmonic Distortion (THD)Var
power quality assessment function / voltage dipVar
power quality assessment function / detection of asymmetryVar
power quality assessment function / detecting and visualization of voltage fluctuationsVar
power quality assessment function / measurement of the harmonic phase angleYok
product feature / data evaluation according to EN 50160Var
product function / overvoltage detectionVar
product function / for voltage variations and flicker / integrated / according to IEC 61000-4-15Var
accuracy class / of the measuring instrument / according to IEC 61000-4-30Class S
number of sampling values / per 10 sampling cycles2.048
File formats
Type of data format / for record / COMTRADEVar
Type of data format / for record / PQDifVar
type of data transmission / via CSVVar
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
energy management function / calculation of load profilesVar
energy management function / tariffsVar
energy management function / load factor (TOU)Var
number of tariffs8
Measuring inputs
number of inputs / for voltage measurement4
number of inputs / for current measurement3
input voltage / between L and L / maximum690 V
input voltage / between L and N / maximum400 V
input current / maximum10 A
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
measuring range frequency / at the measurement inputs42,5... 69 Hz
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of analog inputs0
number of digital inputs0
number of analog outputs0
number of digital outputs2
Communication
protocol / is supported / IEC 61850Yok
protocol / is supported / Modbus TCPVar
protocol / is supported / Modbus RTUYok
protocol / is supported / SNMPVar
communication function / Modbus RTU as masterYok
number of ports / of the Ethernet interface1
product function / gateway function for Modbus RTUYok
Cybersecurity
type of access control / role-based access control (RBAC)Yok
product function / logging via Audit logYok
product function / logging via Security EventlogYok
service / as web server / HTTPSVar
product function / firmware identifierVar
Time synchronization
type of time synchronizationNTP
Mechanical Design
width96 mm
height96 mm
depth100 mm
weight490 g
product feature / with displayYok
fastening method / DIN-rail mountingVar
fastening method / wall mountingVar
fastening method / rack mountingYok
type of electrical connectionScrew terminals
connectable conductor cross-section0,2... 2,5 mm²
Degree of protection / protection class
protection class IP / on the frontIP20
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-25... +55 °C
ambient temperature / during storage-40... +70 °C
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
